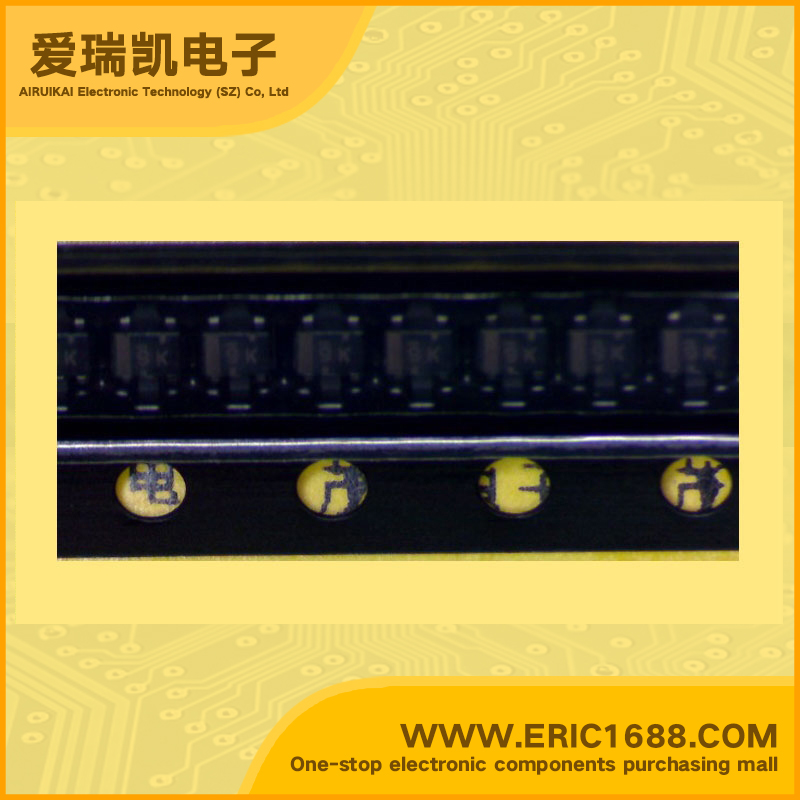

UP01212GOL NPN+NPN Complex Bipolar Transistor 50V 100mA 60 SOT-553 marking 9K switch and digital circuit application

Model：UP01212GOL
Mark / screen / code / typing：9K
Manufacturer：
Date Code：08NOPB
Package：SOT-553
Standard Package：8000
Min Order：100

Hot selling goods

Product description

Collector-Base Voltage(VCBO) Q1/Q2	50V/50V
Collector-Emitter Voltage(VCEO) Q1/Q2	50V/50V
Collector Current(IC) Q1/Q2	100mA/100MA
Q1 Input Resistance(R1)	22KΩ
Q1基极-发射极输入电阻R2 Base-Emitter Resistance(R2)	22KΩ
Q1电阻比(R1/R2) Q1 Resistance Ratio	1
Q2基极输入电阻R1 Input Resistance(R1)	22KΩ
Q2基极-发射极输入电阻R2 Base-Emitter Resistance(R2)	22KΩ
Q2电阻比(R1/R2) Q2 Resistance Ratio	1
DC Current Gain(hFE)	60/60
截止频率fT Transtion Frequency(fT)	150MHZ
Power Dissipation	125MW/0.125W
Description & Applications	Features • Silicon NPN epitaxial planar type • Two elements incorporated into one package (transistors with built-in resistor) • Reduction of the mounting area and assembly cost by one half.
