Location：Home > Stock Inventory > Product Details

MIC2297-15YML LED Driver PMIC PWM，boost Backlight, Flash/Torch 525KHz ~ 675KHz 2.5V ~ 10V MLF2525D-10L

Model：MIC2297-15YML

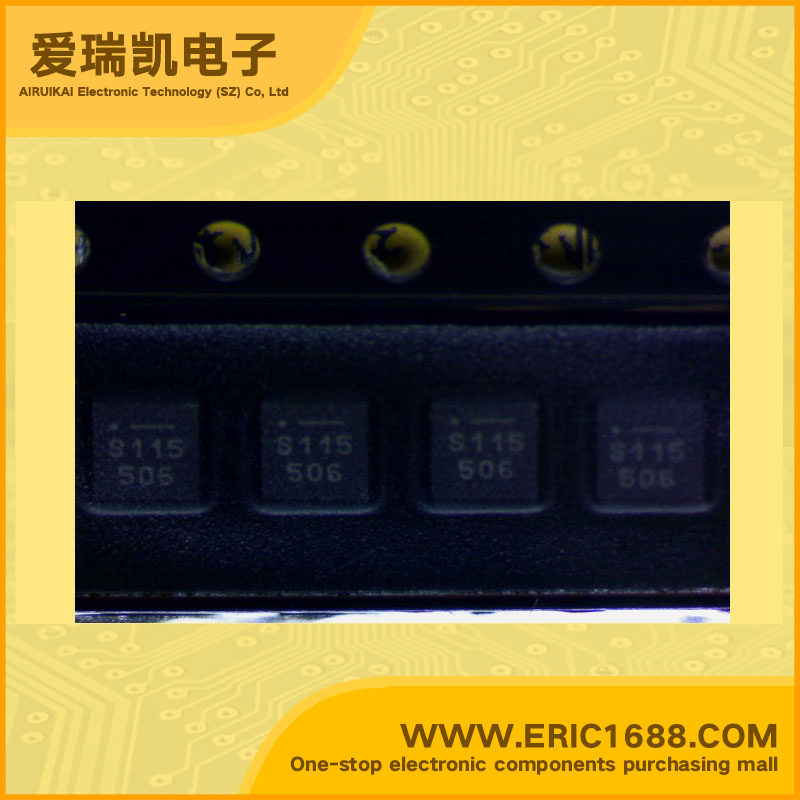

Mark / screen / code / typing：S115
Manufacturer：
Date Code：05+ROHS

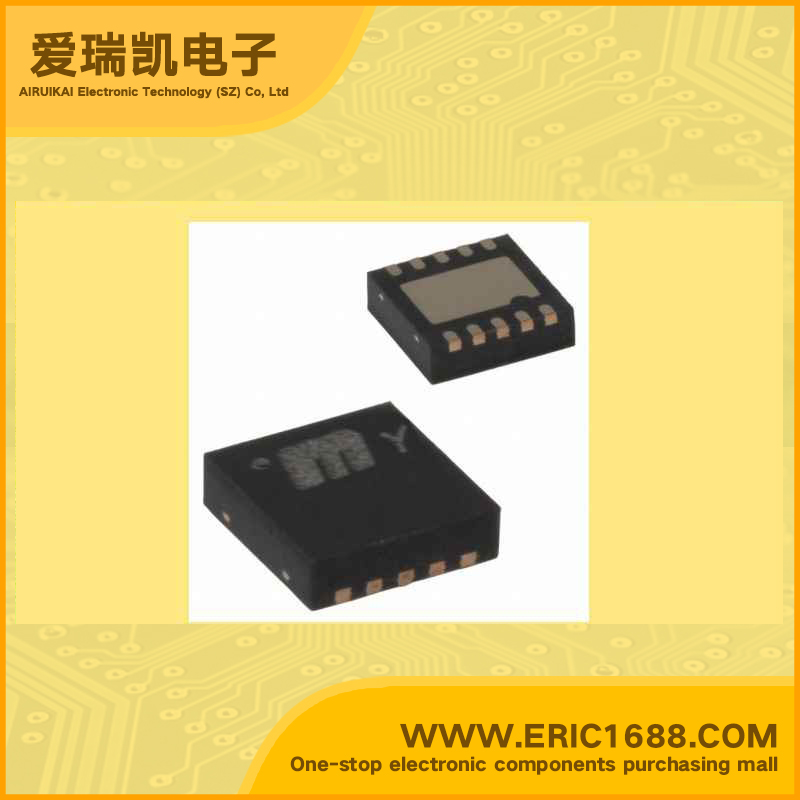

Package：MLF2525D-10L
Standard Package：5000
Min Order：10

Hot selling goods

Product description

恒流 Constant Current
恒压 Constant Voltage
拓扑 Topology	PWM，升压（升压） PWM, Step-Up (Boost)
输出数 Number of Outputs	1
内部驱动器 Internal Driver	是 YES
初级类型 Type - Primary	背光，闪灯/白光 Backlight, Flash/Torch
次级类型 Type - Secondary	白色 LED White LED
频率 Frequency	525KHz ~ 675KHz
电源电压 Voltage - Supply	2.5V ~ 10V
输出电压 Voltage - Output
Description & Applications	FEATURES • 600KHz PWM white LED driver optimized for 6 to 10 series WLEDs • 2.5V to 10V input voltage • Output voltage up to 42V • 1.2A on the Internal power switch • 10-pin (2.5mm × 2.5mm× 0.85mm) MLF™package
描述与应用	特点 •为600KHz PWM白光LED驱动器优化为6至10个串联WLED •2.5V至10V的输入电压 •输出电压高达42V •1.2A内部电源开关 •10针（2.5毫米×2.5毫米×0.85毫米）MLF™封装
