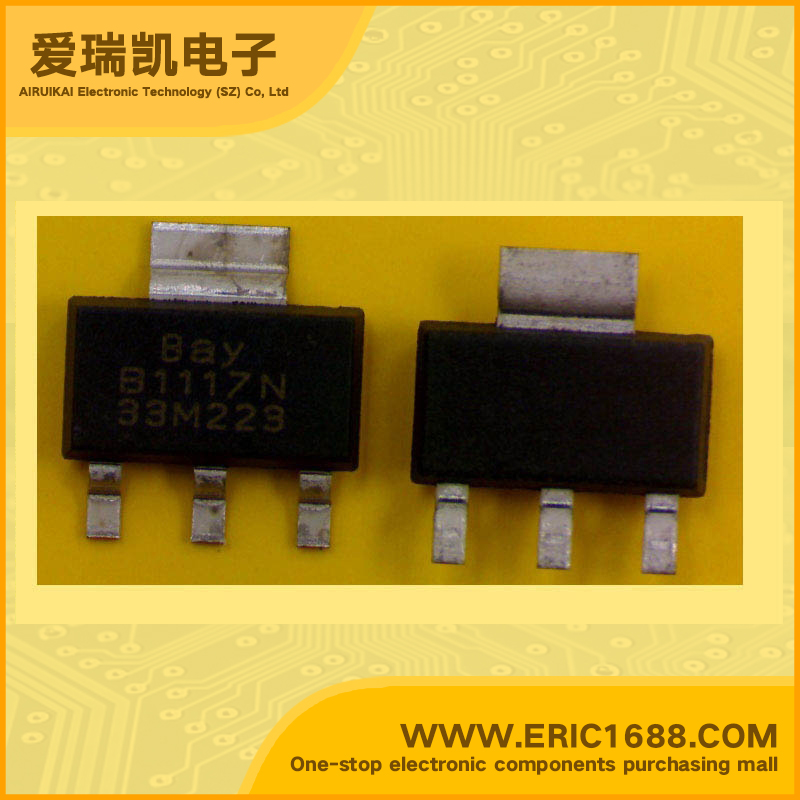

B1117N-3.3 LDO Voltage Regulator 3.3V 800mV/0.8V SOT-223 marking B1117N33 Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 7V |
| 输出电压VOUT Voltage - Output | 3.3V |
| 输出电流Io Current - Output | 1A |
| 最大压降VDO Voltage - Dropout | 800mV/0.8V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 无 No |
| 最大耗散功率Pd Power dissipation | |
| Description & Applications | 1.0Amp Low Dropout Voltage Regulator ；•Adjustable Output Down to 1.2V • Output Current of 1.0Amp • Low Dropout 1.0V for B1117 • Dropout of 0.40 V in for B1117A • 0.05% Load Regulation • Current & Thermal Limiting • Lower Cost SOT-89 Package • High efficiency Linear Regulator • Post regulators fro Switching Supplies • Battery Charger • 5V to 3.3V linear Regulators • Motherboard Clock Supplies |
| 描述与应用 | 1.0AMP低压差稳压器;•至1.2V的可调输出 •输出电流1.0AMP •低压差1.0V B1117 •漏失为0.40 V B1117A •0.05％负载调整 •电流和热限制 •更低的成本SOT-89封装 •高效率线性稳压器 •邮政监管机构来回开关电源 •电池充电器 •5V到3.3V线性稳压器 •主板时钟用品 |
