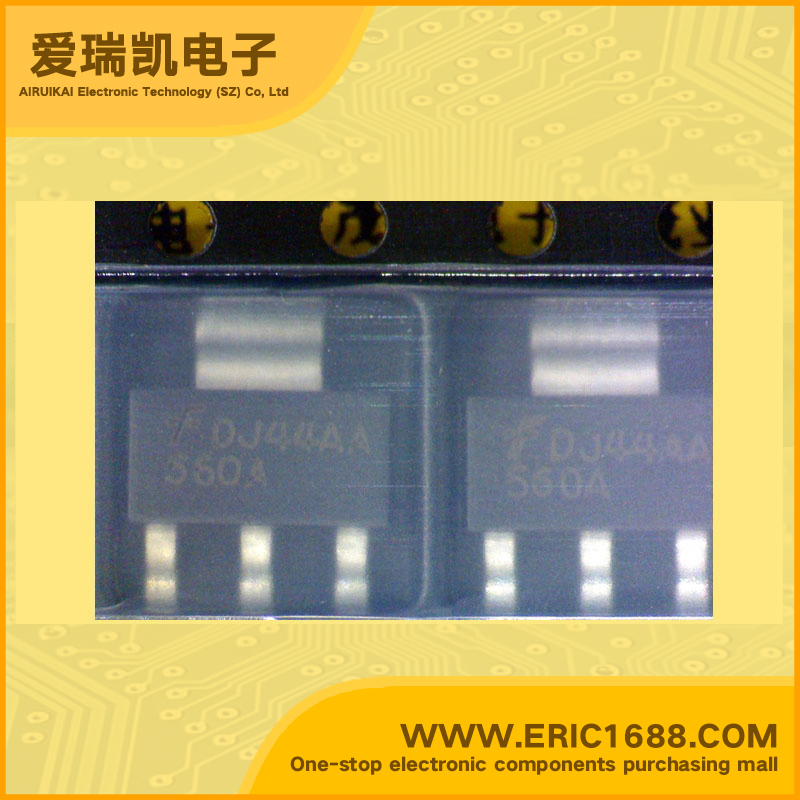

NZT560A NPN Transistors(BJT) 80V 3A 75MHz 250~550 400mV/0.4V SOT-223 marking 560A

Model：NZT560A
Mark / screen / code / typing：560A
Manufacturer：
Date Code：10NOPB 10NOPB
Package：SOT-223
Standard Package：2500
Min Order：10

Hot selling goods

Product description

集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO)	80V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO)	60V
集电极连续输出电流IC Collector Current(IC)	3A
截止频率fT Transtion Frequency(fT)	75MHz
直流电流增益hFE DC Current Gain(hFE)	250~550
管压降VCE（sat） Collector-Emitter Saturation Voltage	400mV/0.4V
耗散功率Pc Power Dissipation	2W
Description & Applications	•NPN Low Saturation Transistor •These devices are designed with high current gain and low saturation voltage with collector currents up to 3A continuous.
描述与应用	•NPN低饱和晶体管 •这些器件的设计具有高电流增益和低饱和电压与集电极电流连续高达3A
