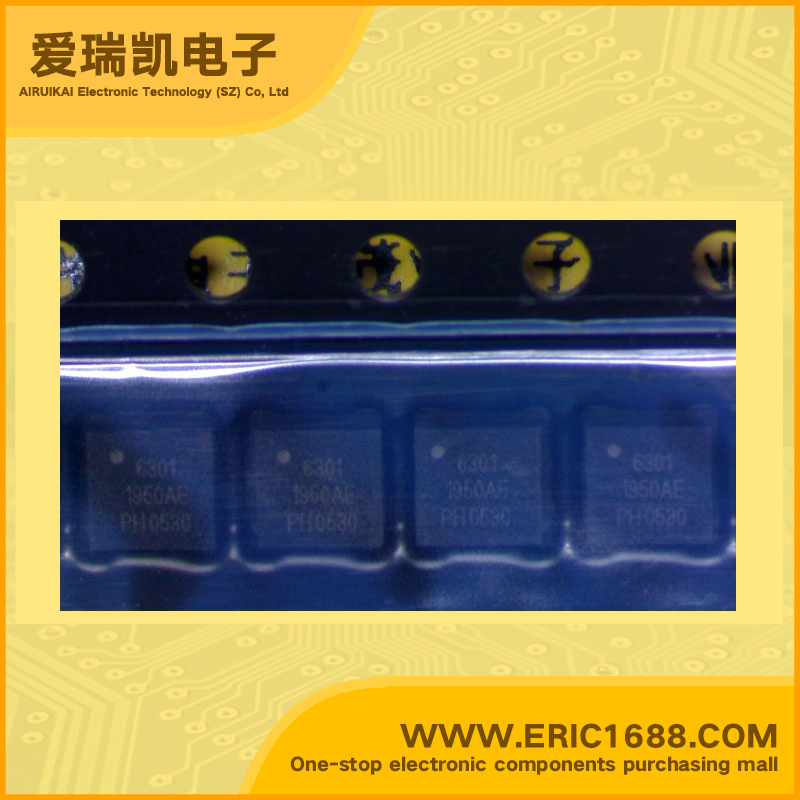

RF amplifier AWT6301M9Q7 M9 marking 6301

Hot selling goods

Product description
频率
Frequency
824MHz~849MHz
P1dB
增益
Gain
27dB
噪声系数
Noise Figure
RF 类型
RF Type
AMPS/CDMA
电源电压
Voltage - Supply
3.4V
电源电流
Current - Supply
测试频率
Test Frequency
Description & ApplicationsFEATURES • Cellular Dual Mode AMPS/CDMA 3.4V/28dBm Linear Power Amplifier Module • InGaP HBT Technology • High Efficiency: 53%AMPS,39% CDMA • Low Quiescent Current: 50 mA • Low Leakage Current in Shutdown Mode: <1 µA • VREF = +2.85 V (+2.7 V min over temp) • Optimized for a 50 Ω System • Low Profile Miniature Surface Mount Package:1.1mm • CDMA 1XRTT, 1xEV-DO Compliant • Pinout Enables Easy Phone Board Migration From 4mm x 4mm Package APPLICATIONS • Signal mode CDMA Wireless Handsets • Dual Band AMPS/CDMA Wireless Handsets
描述与应用特点 •蜂窝双模AMPS/ CDMA3.4V/28dBm的线性功率放大器模块的InGaP HBT技术 •高效率:53%AMPS,CDMA39% •低静态电流:50 mA •低漏电流关断模式:<1μA •VREF=+2.85 V(+2.7 V最小过温) •优化50Ω系统 •薄型微型表面贴装封装:1.1毫米 •CDMA 1XRTT的1xEV-DO标准 •引脚4mm x 4mm封装,便于手机板迁移 应用 •信号模式CDMA无线手机 •双频AMPS/ CDMA无线手机
