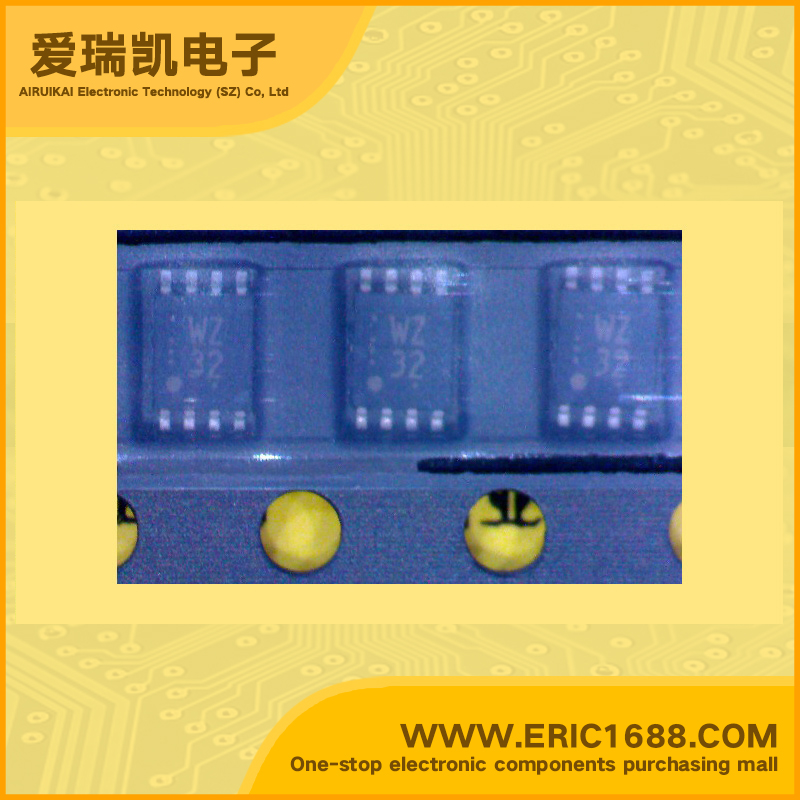

Integrated Circuit(IC) OR gate TC7WZ32FK US8 marking wz32

Hot selling goods

Product description
逻辑类型
Logic Type
或门 OR Gate
电路数
Number of Circuits
1
输入数
Number of Inputs
2
电源电压Vcc
Voltage - Supply
1.65V~5.5V
静态电流Iq
Current - Quiescent (Max)
1µA
输出高,低电平电流
Current - Output High, Low
-24mA,24mA
低逻辑电平
Logic Level - Low
0.25v~0.3v
高逻辑电平
Logic Level - High
0.7v~0.75v
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
2.4ns @ 5V,50pF
Description & Applications2 Input or Gate ;High output drive: ±24 mA (min) @VCC = 3V Super high speed operation: tpd 2.4 ns (typ.) @VCC = 5 V, 50 pF Operation voltage range: VCC (opr) = 1.65~5.5 V Latch-up performance: ±500 mA or more ESD performance: ±200 V or more (JEITA) ±2000 V or more (MIL) Power down protection is provided on all inputs and outputs. Matches the performance of TC74LCX series when operated at 3.3 V VCC
描述与应用2输入或门;“高输出驱动:@ VCC= 5 V,±24 mA(分钟)@ VCC= 3V超高速度运行:TPD2.4纳秒(典型值)50 PF 工作电压范围:VCC(OPR)=1.65〜5.5 V 闭锁性能:±500 mA或更大 ESD性能:±200 V或以上(JEITA)   ±2000 V以上(MIL) 掉电保护提供所有输入和输出。  操作时的性能相匹配的TC74LCX系列 在3.3 V VCC“
