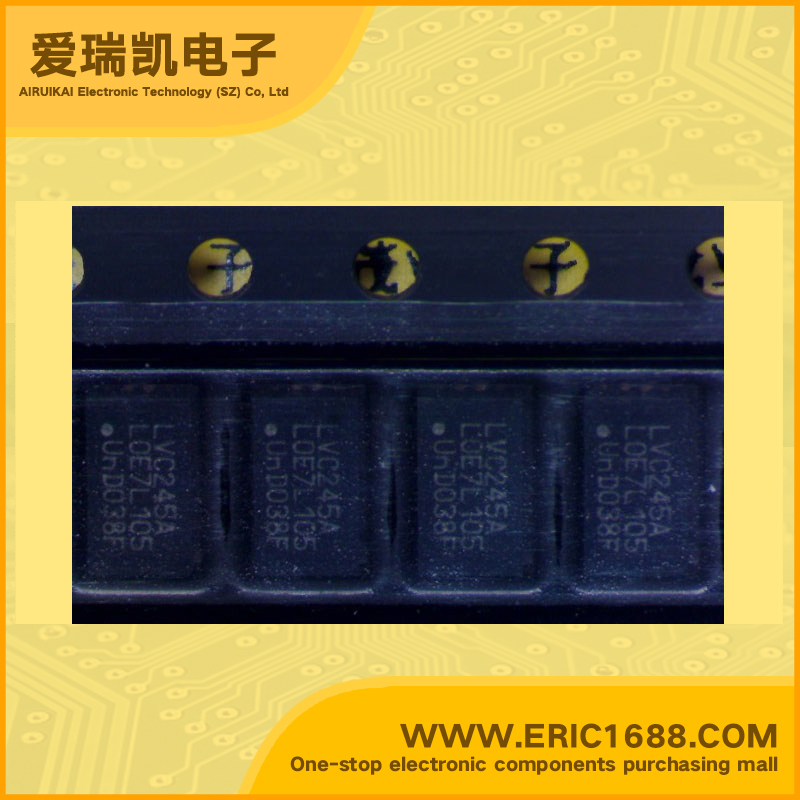

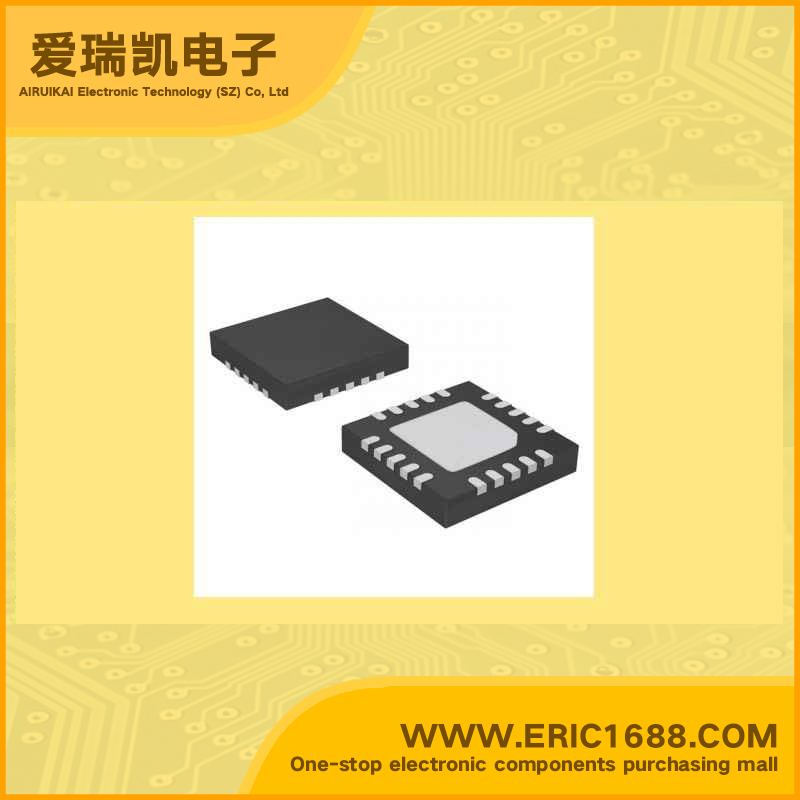

Integrated Circuit(IC) Bus Transceiver 74LVC245ABQ DHVQFN20/SOT764-1 marking LVC245

Hot selling goods

Product description
逻辑类型
Logic Type
收发器,非反相 Transceiver, Non-Inverting
电路数
Number of Circuits
1
输入数
Number of Inputs
8
电源电压Vcc
Voltage - Supply
1.2 V ~ 3.6 V
静态电流Iq
Current - Quiescent (Max)
24mA,24mA
输出高,低电平电流
Current - Output High, Low
Octal bus transceiver; 3-state The 74LVC245A; 74LVCH245A are 8-bit transceivers featuring non-inverting 3-state bus compatible outputs in both send and receive directions. The device features an output enable (OE) input for easy cascading and a send/receive (DIR) input for direction control. OE controls the outputs so that the buses are effectively isolated. Inputs can be driven from either 3.3 V or 5 V devices. When disabled, up to 5.5 V can be applied to the outputs. These features allow the use of these devices in mixed 3.3 V and 5 V applications. The 74LVCH245A bus hold on data inputs eliminates the need for external pull-up resistors to hold unused inputs. 5V tolerant inputs/outputs for interfacing with 5 V logic Wide supply voltage range from 1.2 V to 3.6 V CMOS low-power consumption Direct interface with TTL levels Inputs accept voltages up to 5.5 V High-impedance when VCC = 0 V Bus hold on all data inputs (74LVCH245A only) Complies with JEDEC standard: JESD8-7A (1.65 V to 1.95 V) JESD8-5A (2.3 V to 2.7 V) JESD8-C/JESD36 (2.7 V to 3.6 V) ESD protection: HBM JESD22-A114F exceeds 2000 V MM JESD22-A115B exceeds 200 V CDM JESD22-C101E exceeds 1000 V Specified from 40 C to +85 C and 40 C to +125 C
低逻辑电平
Logic Level - Low
八路总线收发器,三态 该74LVC245A;74LVCH245A是8位具有非反相3态总线收发器 兼容输出都发送和接收方向。该器件具有输出 启用(OE)输入,方便级联和发送/接收的方向控制(DIR)输入。 OE控制输出使巴士有效隔离。 输入可驱动无论从3.3 V或5 V设备。禁用时,高达5.5 V,可以应用到输出。这些特性允许使用这些设备,在混合 3.3伏和5伏的应用程序。 该74LVCH245A总线保持数据输入无需外部上拉起来 持有未使用的输入电阻。 5V容限输入/输出接口与5 V逻辑 宽电源电压范围从1.2 V到3.6 V CMOS低功耗 直接接口TTL水平 输入接受高达5.5 V的电压 高阻抗时VCC= 0 V 总线保持所有数据输入(仅74LVCH245A) 符合JEDEC标准: JESD8-7A(1.65 V至1.95 V) JESD8-5A(2.3 V到2.7 V) JESD8-C/JESD36(2.7 V至3.6 V) ESD保护: HBM JESD22-A114F超过2000 V MM JESD22-A115B超过200 V CDM JESD22-C101E超过1000 V 40C至+85C40C至125C
高逻辑电平
Logic Level - High
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
