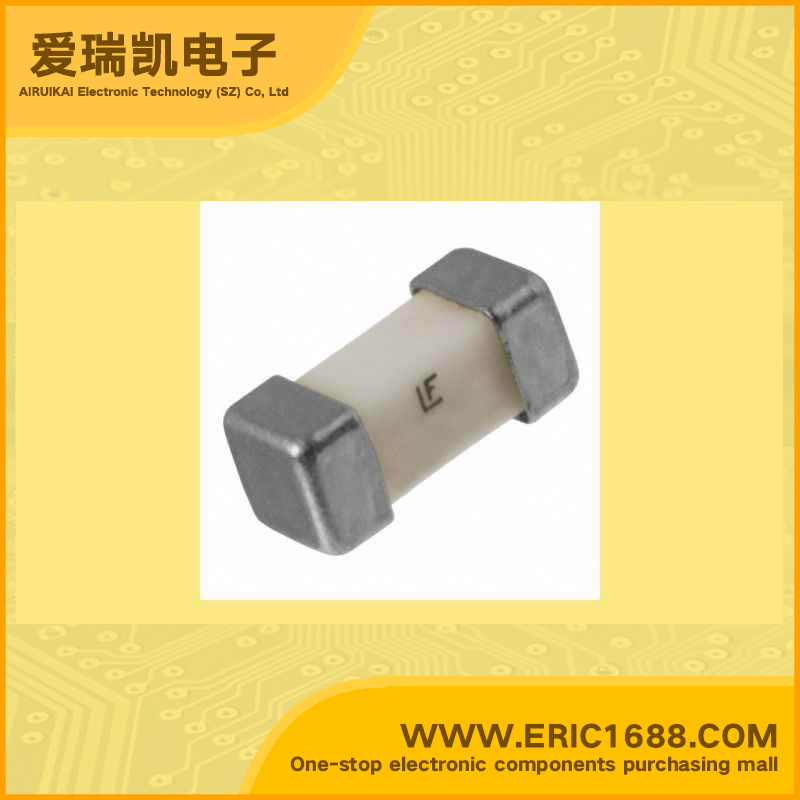

Slow Blow Acting fuse 0454.375MR 375mA/0.375A 125V 1808-375MA marking 375MA

Hot selling goods

Product description
额定电流
Current Rating
375mA/0.375A
额定电压AC
Voltage Rating - AC
125V
额定电压DC
Voltage Rating - DC
125V
分断能力
Interrupting Rating
50A
熔断积分I2T (A2sec)
Melting I²t
0.101
Description & ApplicationsSurface Mount Fuses Subminiature Surface Mount NANO2® Slo-Blo® Fuse 452/454 Series he NANO2 Slo-Blo fuse has enhanced inrush withstand characteristics over the NANO2 Fast-Acting fuse. The unique time delay feature of this fuse design helps solve the problem of nuisance “opening” by accommodating inrush currents that normally cause a fast-acting fuse to open. Vibration: MIL-STD-202, Method 201 (10–55 Hz, .06 in. total excursion). Salt Spray: MIL-STD-202, Method 101, Test Condition B (48 hrs.). Insulation Resistance (After Opening): MIL-STD-202, Method 302, Test Condition A, (10,000 ohms minimum). Resistance to Soldering Heat: MIL-STD-202, Method 210, (3 sec. at 260°C). Thermal Shock: MIL-STD-202, Method 107, Test Condition B (–65 to 125°C). Moisture Resistance: MIL-STD-202, Method 106, High Humidity (90-98 RH), Heat (65°C). PHYSICAL SPECIFICATIONS: Materials: Body: Ceramic Terminations: Tin-Lead Alloy or Silver Plated Brass Caps. Soldering Parameters: Wave Solder — 260°C, 3 seconds maximum Reflow Solder — 230°C, 30 seconds maximum Solderability: MIL-STD-202, Method 208.
描述与应用表面贴装保险丝超小型表面贴装 他NANO2®SLO-BLO®保险丝454分之452系列NANO2 SLO-BLO保险丝增强浪涌耐压特性在NANO2 快熔保险丝。的唯一的时间延迟的特点,这 保险丝设计有助于解决通过容纳浪涌电流通常会引起快速熔断器打开的滋扰“开放”问题。 振动:MIL-STD-202方法201(10-55赫兹,.06英寸总偏移)。 盐雾:MIL-STD-202方法101,测试条件B(48小时)。 绝缘电阻(开封后):MIL-STD-202, 方法302,测试条件A,(10,000欧姆最小)。 耐焊接热:MIL-STD-202,方法210, (3秒,在260℃)。 热冲击:MIL-STD-202方法107, 测试条件B(-65到125°C)。 防潮性:MIL-STD-202,方法106, 高湿度(90-98 RH),热(65°C)。 物理规格: 材料:本体:陶瓷 终端:锡铅合金或银 镀黄铜上限。 焊接参数: 波峰焊 - 260°C,最大3秒 回流焊接 - 230°C,30秒最大 可焊性:MIL-STD-202方法208
