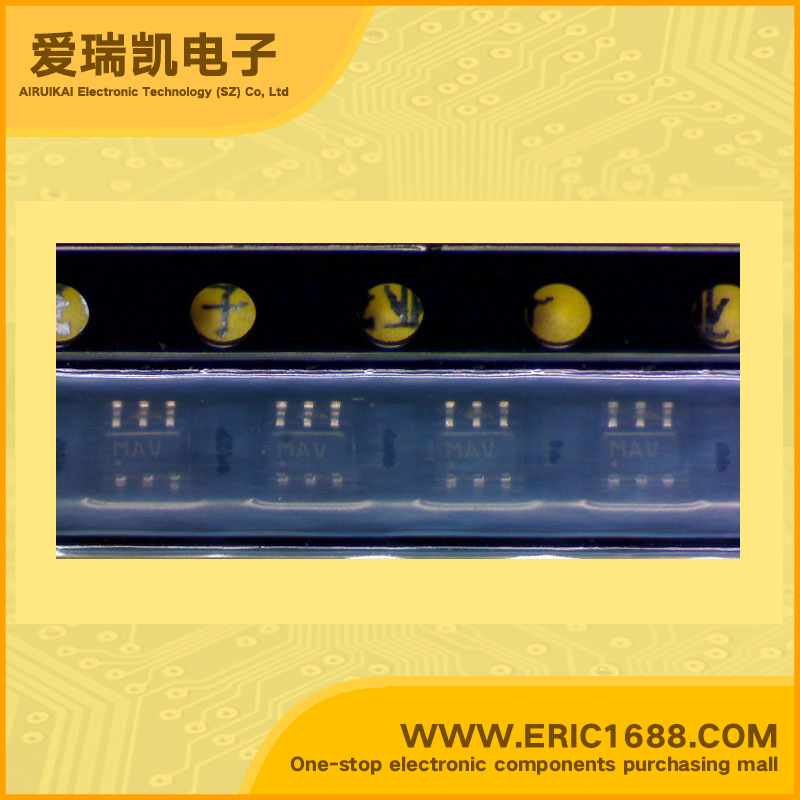

Integrated Circuit（IC） Inverting Schmitt trigger NL27WZ14DFT2G SC?88/SOT?363/SC70?6/TSSOP6 marking MA
| 逻辑类型 Logic Type | 反相施密特触发器 Inverting Schmitt trigger |
| 电路数 Number of Circuits | 2 |
| 输入数 Number of Inputs | 1 |
| 电源电压Vcc Voltage - Supply | 1.65V~5.5V |
| 静态电流Iq Current - Quiescent (Max) | 1uA |
| 输出高，低电平电流 Current - Output High, Low | -32mA，32mA |
| 低逻辑电平 Logic Level - Low | 0.4V~1.2V |
| 高逻辑电平 Logic Level - High | 1.8V~3.6V |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 4.9ns @ 5V，50pF |
| Description & Applications | Features Dual Schmitt−Trigger Inverter Designed for 1.65 V to 5.5 V VCC Operation Over Voltage Tolerant Inputs and Outputs LVTTL Compatible − Interface Capability with 5.0 V TTL Logic with VCC = 3.0 V LVCMOS Compatible 24 mA Balanced Output Sink and Source Capability Near Zero Static Supply Current Substantially Reduces System Power Requirements Current Drive Capability is 24 mA at the Outputs Chip Complexity: FET = 72 Pb−Free Packages are Available |
| 描述与应用 | 特性 双施密特触发器逆变器 为1.65 V至5.5 V的VCC运作 过电压容限输入和输出 LVTTL的兼容 - 5.0 V TTL逻辑接口功能与 VCC=3.0 V 路LVCMOS兼容 24 mA平衡输出库和源能力 近零静态电流大幅度降低了系统电源要求 在输出电流驱动能力为24毫安 芯片的复杂性：FET= 72 提供无铅封装 |
