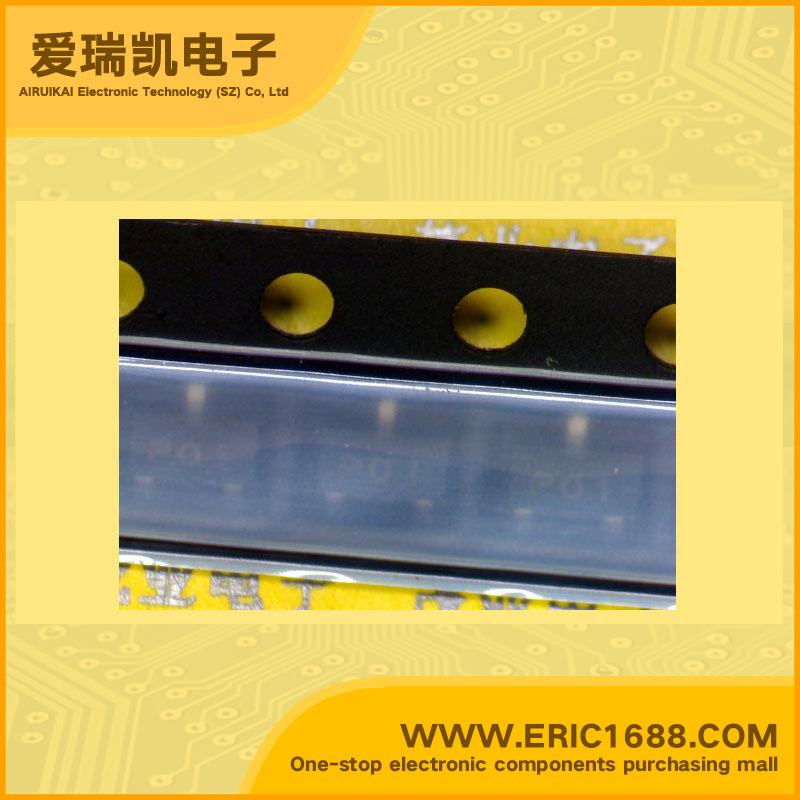

DP030S PNP transistors（BJT） -15V -300mA/-0.3A 350MHz 200~450 -500mV/-0.5V SOT-23/SC-59 marking P01 low voltagelarge current driver

Model：DP030S
Mark / screen / code / typing：P01
Manufacturer：
Date Code：03+ 03+
Package：SOT-23/SC-59
Standard Package：3000
Min Order：10

Hot selling goods

Product description

集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO)	-15V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO)	-12V
集电极连续输出电流IC Collector Current(IC)	−300mA/-0.3A
截止频率fT Transtion Frequency(fT)	350MHz
直流电流增益hFE DC Current Gain(hFE)	200~450
管压降VCE（sat） Collector-Emitter SaturationVoltage	−500mV/-0.5V
耗散功率Pc PoWer Dissipation	200mW/0.2W
Description & Applications	PNP Silicon Transistor Features • Extremely low collector-to-emitter saturation voltage ( VCE(SAT)= -0.15V Typ. @IC/IB=-100mA/-10mA) • Suitable for low voltage large current drivers • Excellent hFE Linearity • Complementary pair with DN030S • Switching Application
描述与应用	PNP硅晶体管特点 •极低的集电极 - 发射极饱和电压（VCE（SAT）=-0.15V典型值@ IC/ IB=-100mA/-10mA） •适用于低电压大电流驱动器 •优秀的HFE线性 •DN030S互补配对 •开关应用
