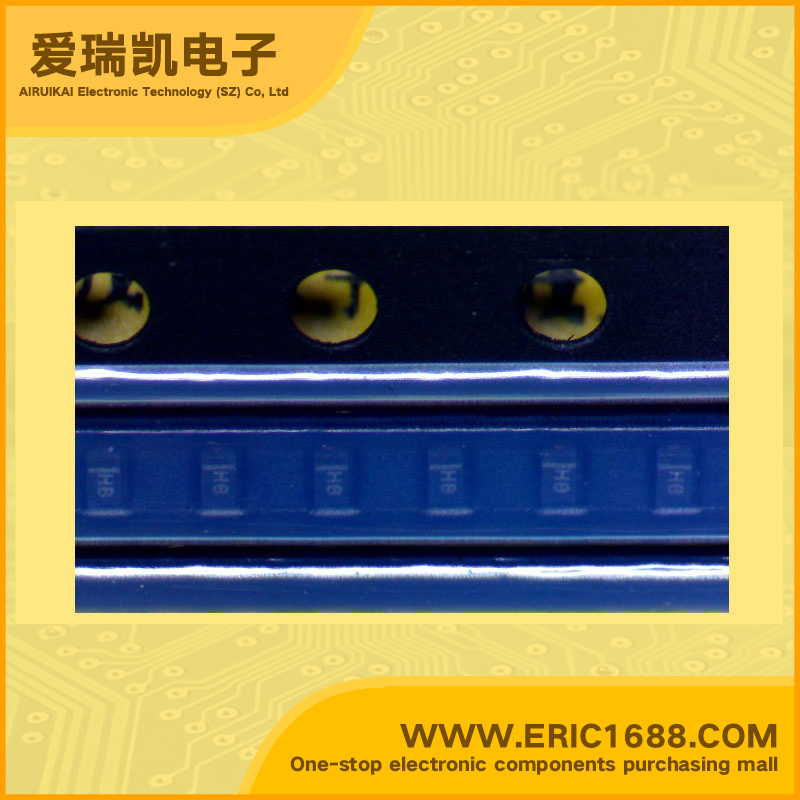

VCUT0714A-HD1-GS08 Bidirectional ESD LLP1006-2L MARKING H8
| Polarization | Bidirectional |
| Reverse Standoff Voltage (VRWM) | PIN2 TO1 14V PIN1 TO 2 7V |
| Breakdown Voltage (VBR) | PIN2 TO1 14.5V PIN1 TO 2 7.5V |
| Peak Pulse Power Dissipation (PPPM) | 63W |
| Peak Forward Surge Current (IPPM) | |
| Power dissipation (Pd) | |
| Description & Applications | Bidirectional Asymmetrical (BiAs) Single Line ESD-Protection
Diode in LLP1006-2L
• Ultra compact LLP1006-2L
• Low package height < 0.4 mm
• 1-line ESD-protection
• Working range - 7 V up to + 14 V or - 14 V up to
+ 7 V
• Low leakage current < 0.1 µA
• Low load capacitance typical CD = 8 pF
• ESD-protection acc. IEC 61000-4-2
± 25 kV contact discharge
± 30 kV air discharge
• Soldering can be checked by standard vision inspection.
No X-ray necessary
• e4 - precious metal (e.g. Ag, Au, NiPd, NiPdAu) (no Sn)
• Compliant to RoHS Directive 2002/95/EC and in
accordance to WEEE 2002/96/EC
|
| Technical Documentation Download | Read Online |
