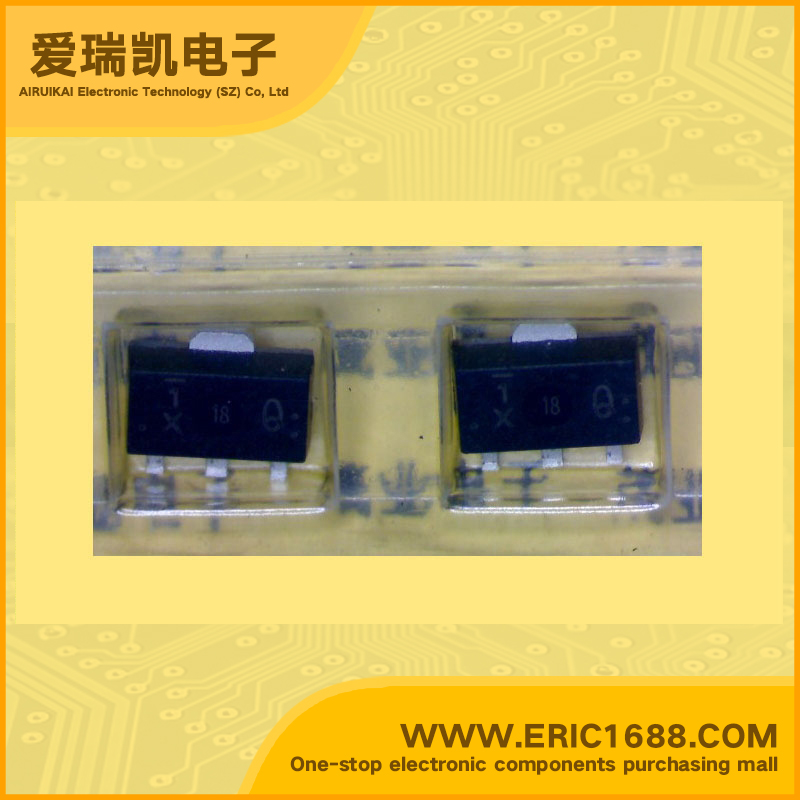

2SB1599GQL PNP transistors（BJT） -50V -3A 150MHz 80~160 -1000mV/-1V SOT-89/SC-62 marking 1XQ poweramplifier
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | -50V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | −40V |
| 集电极连续输出电流IC Collector Current(IC) | -3A |
| 截止频率fT Transtion Frequency(fT) | 150MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 80~160 |
| 管压降VCE（sat） Collector-Emitter SaturationVoltage | -1000mV/-1V |
| 耗散功率Pc PoWer Dissipation | 1W |
| Description & Applications | PNP Silicon epitaxial planar transistor For power amplification Complementary to 2SD2457 Features Low collector to emitter saturation voltage VCE(sat) Mini Power type package |
| 描述与应用 | PNP硅外延平面晶体管 对于功率放大 补充型2SD2457 特点 低集电极到发射极饱和电压VCE（SAT） 迷你功率型封装 |
