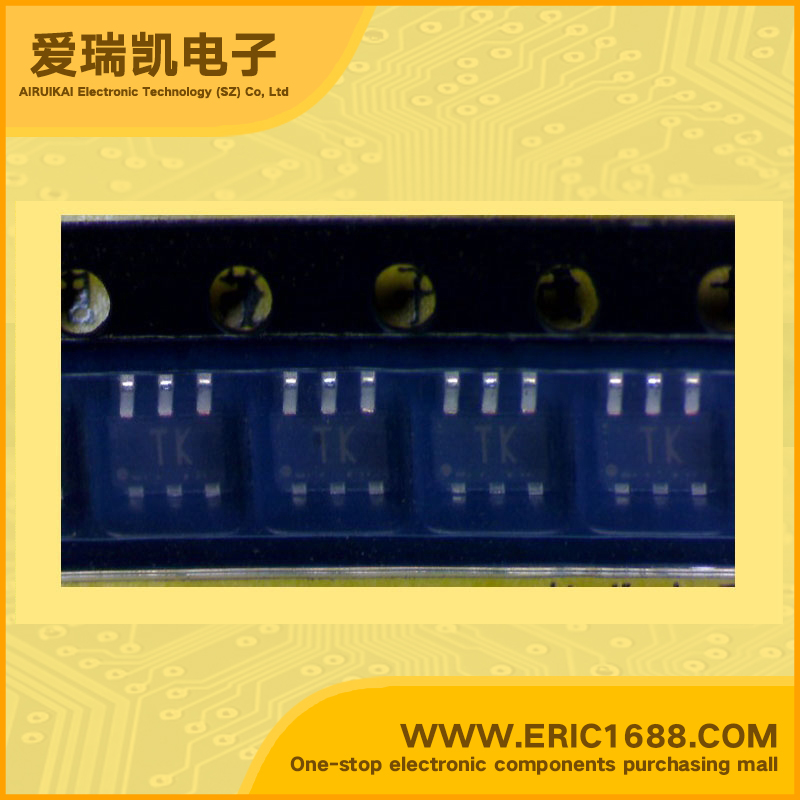

UPA1911ATE MOSFET N-Channel 20V 2.5A SOT-163/SOT23-6/TSOP-6 marking TK fast switch/low on-resistance

Hot selling goods

Product description
最大源漏极电压Vds Drain-Source Voltage20V
最大栅源极电压Vgs(±) Gate-Source Voltage12V
最大漏极电流Id Drain Current2.5A
源漏极导通电阻ΩRds DΩ/Ohmain-SouΩ/Ohmce On-State Ω/Ohmesistance0.115Ω/Ohm @负1.5A,负4.5V
开启电压Vgs(th) Gate-Source Threshold Voltage-0.5--1.5V
耗散功率Pd Power Dissipation200mW/0.2W
Description & ApplicationsMOS FIELD EFFECT TRANSISTOR DESCRIPTION The µPA1900 is a switching device which can be driven directly by a 2.5 V power source. The µPA1900 features a low on-state resistance and excellent switching characteristics, and is suitable for applications such as power switch of portable machine and so on. FEATURES • Can be driven by a 2.5 V power source • Low on-state resistance RDS(on)1 = 35 mΩ MAX. (VGS = 4.5 V, ID = 3.0 A) RDS(on)2 = 38 mΩ MAX. (VGS = 4.0 V, ID = 3.0 A) RDS(on)3 = 45 mΩ MAX. (VGS = 2.5 V, ID = 3.0 A)
描述与应用MOS场效应晶体管 说明 μPA1900是可驱动的开关装置直接由2.5 V电源。 μPA1900具有低通态电阻和优良的开关特性,是适合于的应用,如便携机的电源开关等 •可通过2.5 V电源驱动 •低通态电阻 RDS(上)1=35mΩ最大。 (VGS=4.5 V,ID= 3.0 A) 的RDS(on)=38mΩ最大。 (VGS=4.0 V,ID= 3.0 A) 的RDS(on)=45mΩ最大。 (VGS=2.5 V,ID= 3.0 A)
