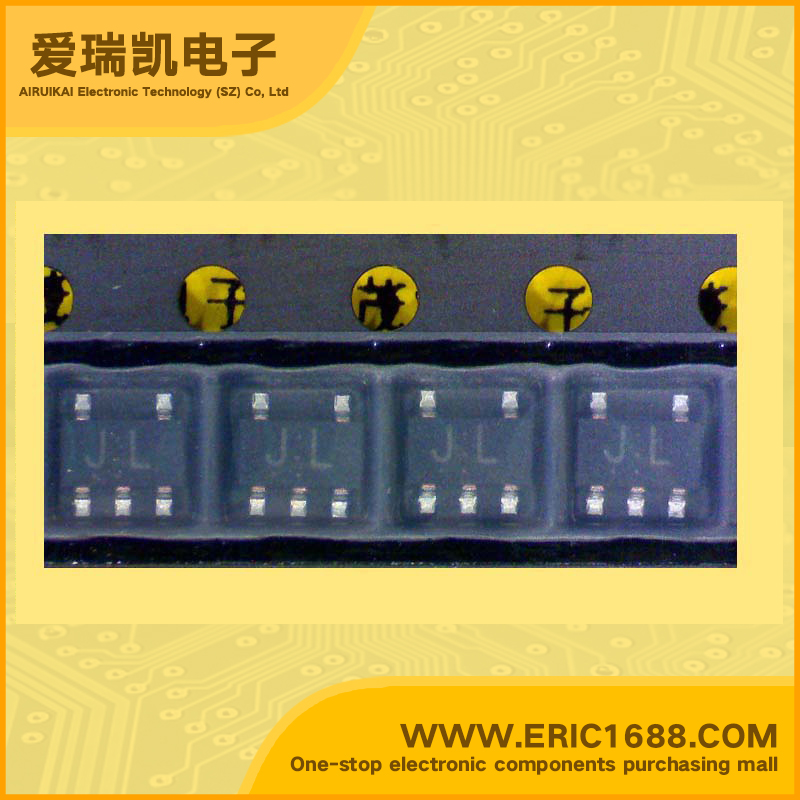

Logic circuit Buffer/Line Driver TC7SZ17F SOT-153/SMV marking JL

Model：TC7SZ17F
Mark / screen / code / typing：JL
Manufacturer：
Date Code：10+ROHS 10+ROHS
Package：SOT-153/SMV
Standard Package：3000
Min Order：10

Hot selling goods

Product description

逻辑类型 Logic Type	施密特触发器 Schmitt Trigger
电路数 Number of Circuits	1
输入数 Number of Inputs	1
电源电压Vcc Voltage - Supply	1.65 V ~ 5.5 V
静态电流Iq Current - Quiescent (Max)	24mA，24mA
输出高，低电平电流 Current - Output High, Low	Schmitt Buffer High output current Super high speed operation Matches the performance of TC74LCX series when operated
低逻辑电平 Logic Level - Low	施密特缓冲器高输出电流超高速运行操作时的性能相匹配的TC74LCX系列
高逻辑电平 Logic Level - High
传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL
Description & Applications
描述与应用
