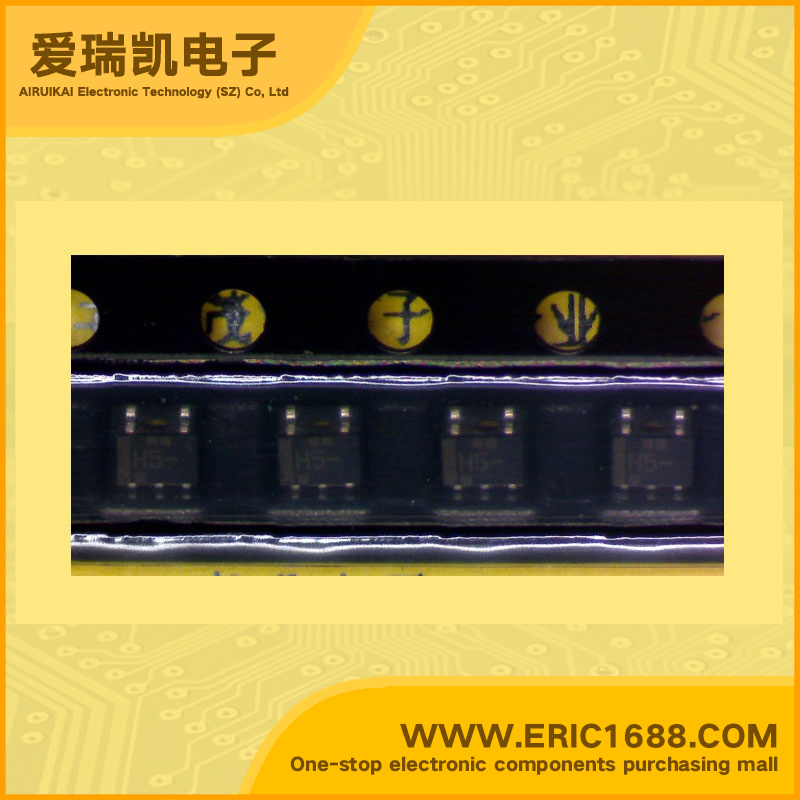

Inverter 1-Element CMOS HD74HC1G04CME SOT-353 Marking H5

Hot selling goods

Product description
逻辑类型
Logic Type		 反相器 Inverter
电路数
Number of Circuits		 1
输入数
Number of Inputs		 1
电源电压Vcc
Voltage - Supply		 2V~6V
静态电流Iq
Current - Quiescent (Max)		 1uA
输出高，低电平电流
Current - Output High, Low		 -2.6mA，2.6mA
低逻辑电平
Logic Level - Low		 0.5V~1.8V
高逻辑电平
Logic Level - High		 1.5V~4.2V
传播延迟时间@Vcc，CL
Max Propagation Delay @ V, Max CL		 12ns @ 4.5V，50pF
Description & Applications Inverter；Features The basic gate function is lined up as Renesas uni logic series. Supplied on emboss taping for high-speed automatic mounting. Electrical characteristics equivalent to the HD74HC04 Supply voltage range : 2 to 6 V Operating temperature range : –40 to +85°C |IOH| = IOL = 2 mA (min)
描述与应用 逆变器;特性 基本门功能一字排开日立单向逻辑系列 提供浮雕盘带高速自动安装 电气特性相当于HD74HC32 电源电压范围：2到6 V 工作温度范围：-40至+85°C | IOH= IOL=2 mA（最小）
List of related models
