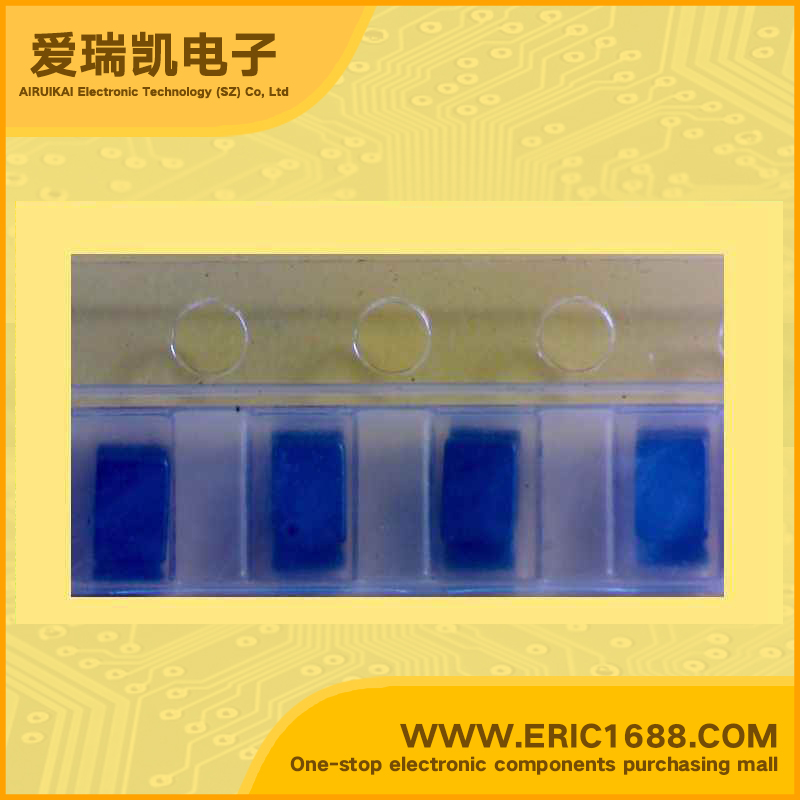

low power inductor LQN1HR14J04 140nH/0.14UH 1206-R14J

Hot selling goods

Product description
电感值
Inductance
140nH/0.14UH
误差
Tolerance
±5%
额定电流
Current Rating
700mA
饱和电流
Current - Saturation
不同频率时的Q值
Q @ Frequency
60 @ 100MHz
自振谐频率SRF
Frequency - Self Resonant
500MHz
DC电阻DCR
DC Resistance (DCR)
0.061Ω/Ohm
屏蔽
Shielding
Description & ApplicationsHigh Q Chip Coil LQN1H for High Frequency The LQN1H series consists of wire wound chip coils which use ferrite cores for high frequency application. Their high Q values from 30MHz to 150MHz and low DC resistance make them suitable in high-frequency resonator circuits. FEATURES 1. Same dimensions as LQN1A/LQH1N/LQH1C series enables design flexibility. 2. Broad range of inductance 54 to 880nH. 3. High Q value and stable inductance at high frequency (30MHz to 150MHz). 4. Both flow and reflow soldering methods are applicable due to excellent solder heat resistance. 5. Miniature size (3.2 Z 1.6 Z 1.8mm) allows parallel mounting at 2.5mm pitch.
描述与应用高频高Q芯片线圈LQN1H LQN1H系列线绕芯片线圈使用铁氧体磁芯的高频应用。从30MHz到150MHz的高Q值和低直流电阻,适合在高频谐振电路。 特点 1。相同的尺寸作为LQN1A/LQH1N/LQH1C系列使设计灵活性。 2。广泛的电感54至880nH。 3。高Q值和稳定的电感在高频(30MHz至150MHz的)。 4。流量和回流焊接方法都适用,优良的焊接耐热性。 5。 (3.2Ž1.6Ž1.8mm)的微型尺寸并行安装在2.5mm间距。
