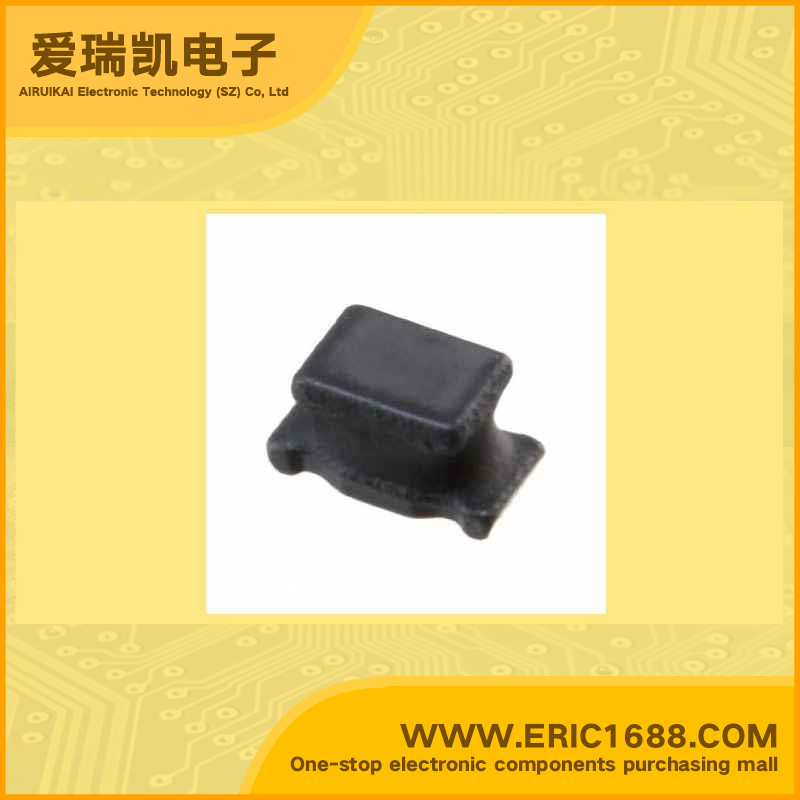

low power inductor LQH1NR33K04 330nH/0.33UH 1206-R33K
| 电感值 Inductance | 330nH/0.33UH |
| 误差 Tolerance | ±10% |
| 额定电流 Current Rating | 230mA |
| 饱和电流 Current - Saturation | |
| 不同频率时的Q值 Q @ Frequency | 30 @ 25MHz |
| 自振谐频率SRF Frequency - Self Resonant | 250MHz |
| DC电阻DCR DC Resistance (DCR) | 0.45Ω/Ohm |
| 屏蔽 Shielding | 无屏蔽 Unshielded |
| Description & Applications | Standard Chip Coil LQH1N/LQH3N/LQH(N)4N Series The chip coil LQH/LQN series consists of miniature chip inductors wound on a special ferrite core and are made possible by an automatic winding technique developed by Murata. These inductors have a high Q at high frequencies and low DC resistance, making them very well suited to enhancing the performance of electronic circuits in video, communications, and audio equipment. FEATURES 1. There are three different inductor types: the LQH1N,LQH3N and LQH(N)4N series. These three series cover a wide inductance range (from 0.1mH to 2.2mH). 2. The series has outstanding frequency characteristics and a high Q value at high frequencies. 3. The low DC resistance permits high current flow. 4. The series has excellent solder heat resistance. Both flow and reflow soldering methods can be employed. |
| 描述与应用 | 标准芯片的线圈LQH1N/LQH3N/LQH（N）4N系列 该芯片线圈LQH/ LQN一系列的由缠绕在一个特殊的铁氧体磁芯微型片式电感器。 特点 1。有三种不同类型的电感器：LQH1N LQH3N和LQH（N）4N系列。这三大系列覆盖的电感范围广（从0.1mH到2.2MH）。 2。该系列产品具有出色的频率特性，在高频率和高Q值。 3。低直流电阻允许高电流。 4。该系列产品具有优异的耐焊热性。流量和回流焊接方法可以采用。 |
