SMBT3906S PNP+PNP Complex Bipolar Transistor -40V -200mA HEF=100~300 SOT-363 marking S2A switch and digital circuit application

Model：SMBT3906S

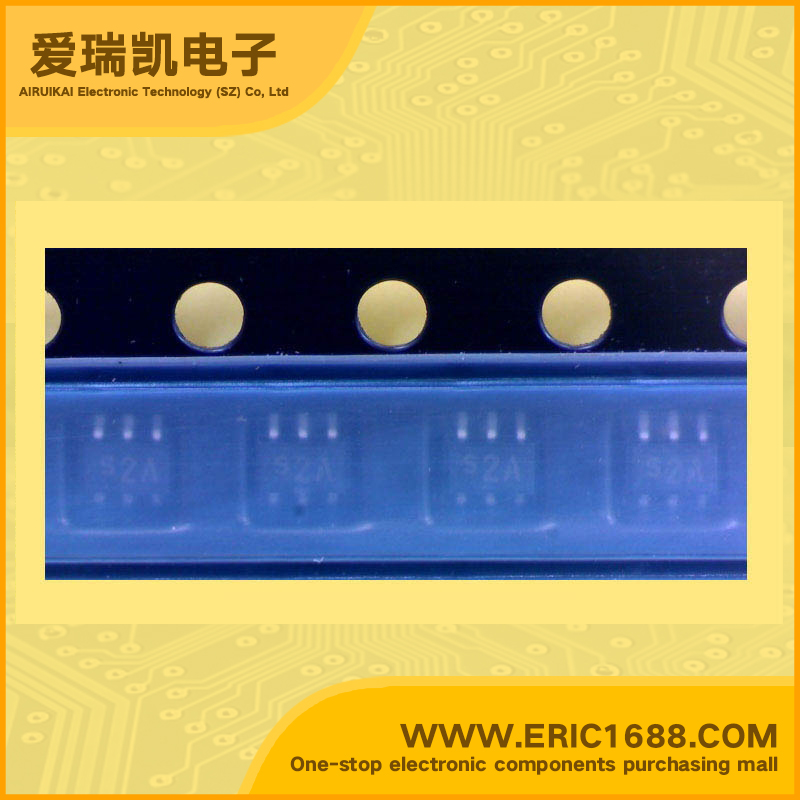

Mark / screen / code / typing：S2A
Manufacturer：
Date Code：05+
Package：SOT-363
Standard Package：3000
Min Order：10

Hot selling goods

Product description

V(BR) CBO Collector-Base Voltage	40V
V(BR) CEO Collector-Emitter Voltage	40V
Collector Current(IC)	200MA/0.2A
Transtion Frequency(fT)	250MHZ
DC Current Gain(hFE)	100~300
VCE(sat) Collector-Emitter Saturation Voltage	0.4V
Power Dissipation (Pd)	250MW/0.25W
Description & Applications	PNP Silicon Switching Transistor Array High DC current gain: 0.1mA to 100mA Low collector-emitter saturation voltage Two ( galvanic) internal isolated Transistors with good matching in one package
Technical Documentation Download	Read Online
