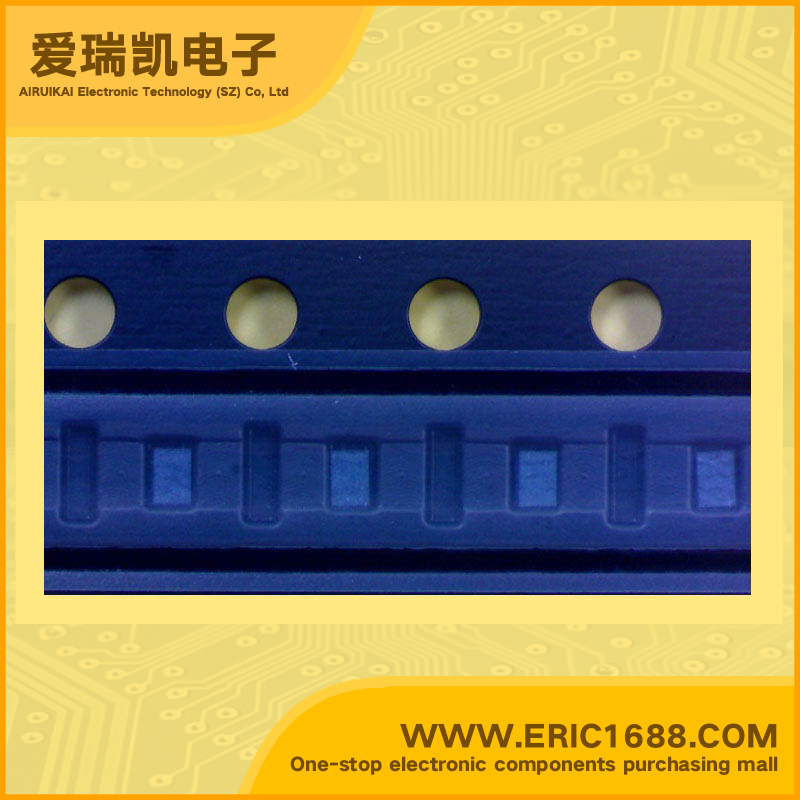

Integrated Circuit（IC） Translator TC7SP386WBG WCSP6 marking M
| 逻辑类型 Logic Type | 变换器 Translator |
| 电路数 Number of Circuits | |
| 输入数 Number of Inputs | |
| 电源电压Vcc Voltage - Supply | |
| 静态电流Iq Current - Quiescent (Max) | |
| 输出高，低电平电流 Current - Output High, Low | |
| 低逻辑电平 Logic Level - Low | |
| 高逻辑电平 Logic Level - High | |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 1.0ns |
| Description & Applications | 1.1 ~ 2.7V |
| 描述与应用 | TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic Dual supply 2-Input Exclusive-OR Gate with Level Translator The TC7SP386 is a dual supply, advanced high-speed CMOS 2-input dual supply voltage interface Exclusive-OR gate fabricated with silicon gate CMOS technology. It is also designed with over voltage tolerant inputs and outputs up to 3.6 V. Designed for use as an interface between a 1.2-V, 1.5-V, 1.8-V, or 2.5-V bus and a 1.8-V, 2.5-V or 3.3-V bus in mixed 1.2-V, 1.5-V, 1.8-V or 2.5-V/1.8-V, 2.5-V or 3.3-V supply systems. All inputs are equipped with protection circuits against static discharge. Features • Level converter for interfacing 1.2-V to 1.8-V, 1.2-V to 2.5-V, 1.2-V to 3.3-V, 1.5-V to 2.5-V, 1.5-V to 3.3-V, 1.8-V to 2.5-V, 1.8-V to 3.3-V or 2.5 V to 3.3-V system. • High-speed operation : tpd = 6.8 ns (max) (VCCA = 2.5 ± 0.2 V, VCCB = 3.3 ± 0.3 V) tpd = 7.8 ns (max) (VCCA = 1.8 ± 0.15 V, VCCB = 3.3 ± 0.3 V) tpd = 9.0 ns (max) (VCCA = 1.5 ± 0.1 V, VCCB = 3.3 ± 0.3 V) tpd = 31 ns (max) (VCCA = 1.2 ± 0.1 V, VCCB = 3.3 ± 0.3 V) tpd = 9.5 ns (max) (VCCA = 1.8 ± 0.15 V, VCCB = 2.5 ± 0.2 V) tpd = 10.5 ns (max) (VCCA = 1.5 ± 0.1 V, VCCB = 2.5 ± 0.2 V) tpd = 32 ns (max) (VCCA = 1.2 ± 0.1 V, VCCB = 2.5 ± 0.2 V) tpd = 37 ns (max) (VCCA = 1.2 ± 0.1 V, VCCB = 1.8 ± 0.15 V) • Output current : IOH/IOL = ±12 mA (min) (VCC = 3.0 V) IOH/IOL = ±9mA (min) (VCC = 2.3 V) IOH/IOL = ±3 mA (min) (VCC = 1.65 V) • Latch-up performance: -300 mA • ESD performance: Machine model ≥ ±200 V Human body model ≥ ±2000 V • Ultra-small package: WCSP6 • Power-down protection is provided on all inputs and outputs |
