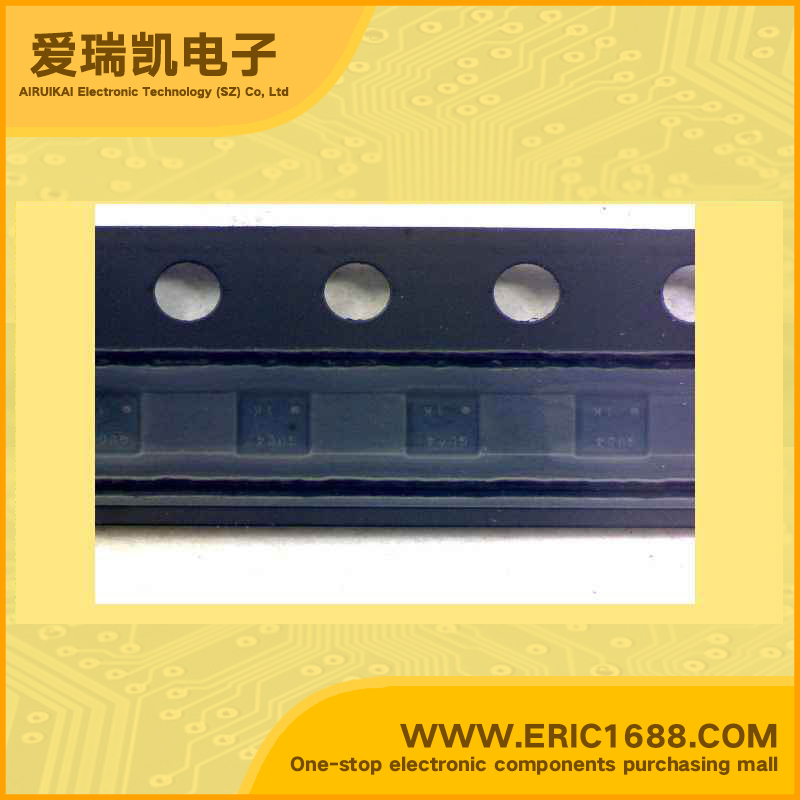

Integrated Circuit（IC） inverter TC7WGU04FC CST8 marking GU04

Hot selling goods

Product description
逻辑类型
Logic Type		反相器 Inverter
电路数
Number of Circuits		3
输入数
Number of Inputs		3
电源电压Vcc
Voltage - Supply		0.9V~3.6V
静态电流Iq
Current - Quiescent (Max)		1µA
输出高，低电平电流
Current - Output High, Low		-8mA,8mA
低逻辑电平
Logic Level - Low		0.26v~0.72V
高逻辑电平
Logic Level - High		0.9v~2.88v
传播延迟时间@Vcc，CL
Max Propagation Delay @ V, Max CL		1.9ns @ 3.3V，15pF
Description & ApplicationsTriple Inverter (Un-Buffer) ;High-level output current: ±8 mA (min) at VCC = 3 V • High-speed operation: tpd = 1.9 ns (typ.) at VCC = 3.3 V,15pF • Operating voltage range: VCC = 0.9 to 3.6 V • 3.6-V tolerant inputs
描述与应用三重逆变器（非缓冲区）;高输出电流：±8 mA（分钟）在VCC=3 V •超高速运转：TPD =2.8 ns（典型值）       在VCC =3.3 V，15PF •工作电压范围：VCC= 0.9到3.6 V •5.5-V宽容输入 •3.6-V断电保护输出
