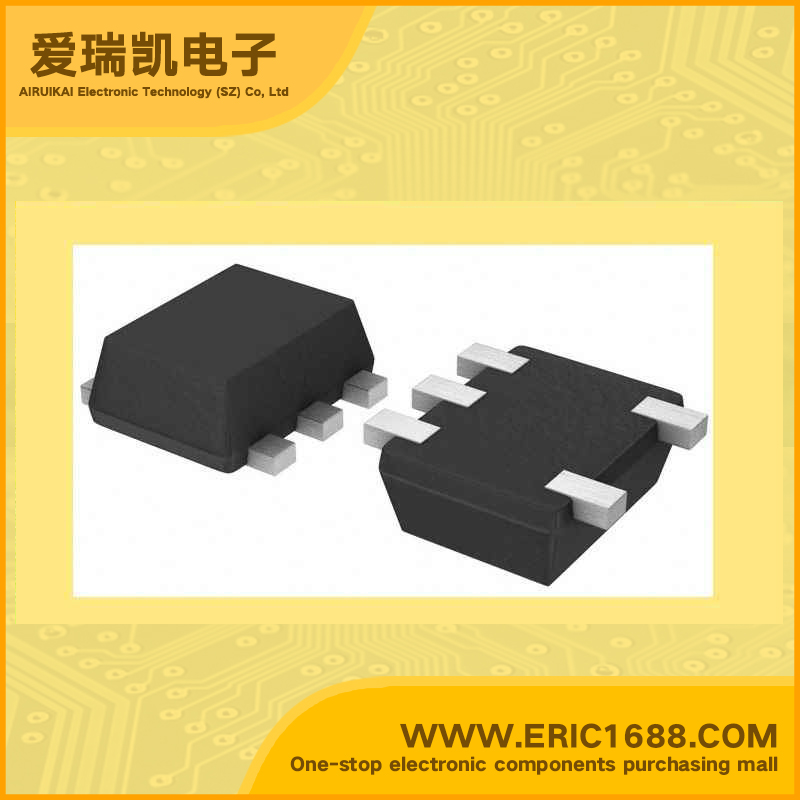

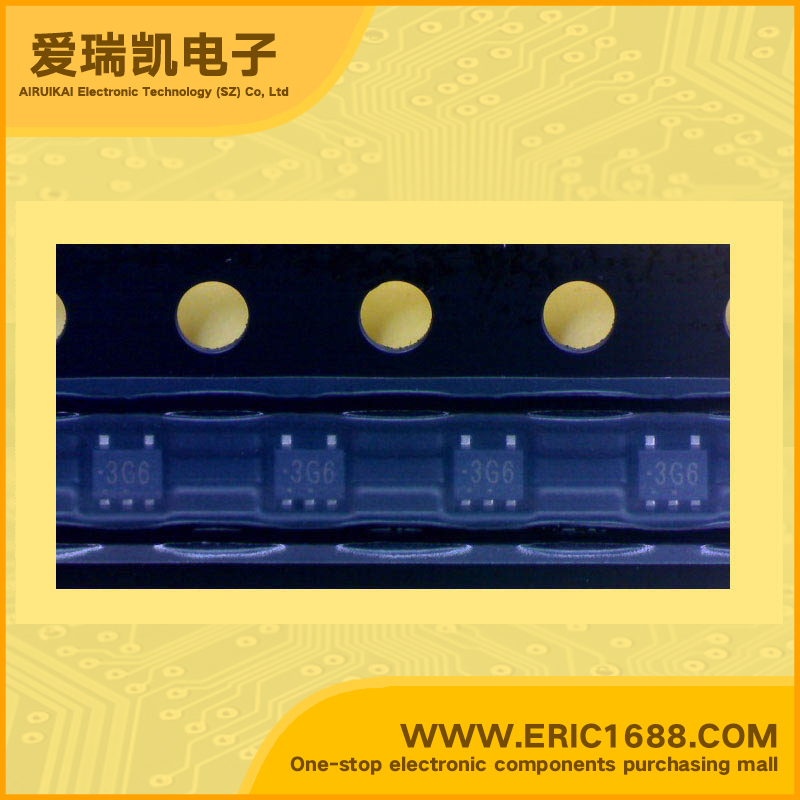

TCR5SC36FE LDO Voltage Regulator 3.3V 85mV With Enable Pin SOT-553/ESV marking 3G6 Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 6V |
| 输出电压VOUT Voltage - Output | 3.3V |
| 输出电流Io Current - Output | 50mA |
| 最大压降VDO Voltage - Dropout | 85mV |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 有 Yes |
| 最大耗散功率Pd Power dissipation | 380mW/0.38W |
| Description & Applications | 200 mA CMOS Low-Dropout Regulator (Point Regulator) •Low quiescent bias current ( IB = 40 μA (typ.) at IOUT = 0 mA ) • Low stand-by current ( IB(OFF) = 0.1 μA (typ.) at Stand-by mode ) • Low voltage operation ( VIN (min) = 1.8 V at IOUT = 50 mA ) • High current output ( IOUT = 200 mA (max) ) • High ripple rejection ( R.R = 80 dB (typ.) at IOUT = 10 mA, f =1kHz ) • Low output noise voltage (VNO = 25 μVrms (typ.) at IOUT = 10 mA, 10 Hz ≤ f ≤ 100 kHz) • Control voltage can be allowed from -0.3 to 5.5 V regardless of VIN voltage • Overcurrent protection • Ceramic capacitors can be used ( CIN = 0.1μF, COUT =1.0 μF ) |
| 描述与应用 | 200毫安的CMOS低压差稳压器 •低静态偏置电流（IB= 40μA（典型值）IOUT= 0毫安） •低待机电流（IB（关） = 0.1μA（典型值）在待机模式） •低电压工作（VIN（MIN） = 1.8 V IOUT= 50 mA时） •高输出电流（IOUT= 200 mA（最大）） •高纹波抑制（RR= 80分贝（典型值）IOUT= 10 mA时，F =1kHz时） •低输出噪声电压（VNO=25μVRMS IOUT = 10毫安，10赫兹（典型值）≤F≤100千赫） •控制电压可以被允许从-0.3至5.5 V，无论VIN电压 •过流保护 •可以使用陶瓷电容（CIN=0.1μF，COUT=1.0μF） |
