Location：Home > Stock Inventory > Product Details

CMZ13 Zener Diodes 13V 2W DO-214AC/SMA-13v marking 13 Communication, Control and Measurement Equipment Constant-Voltage Regulation

Model：CMZ13

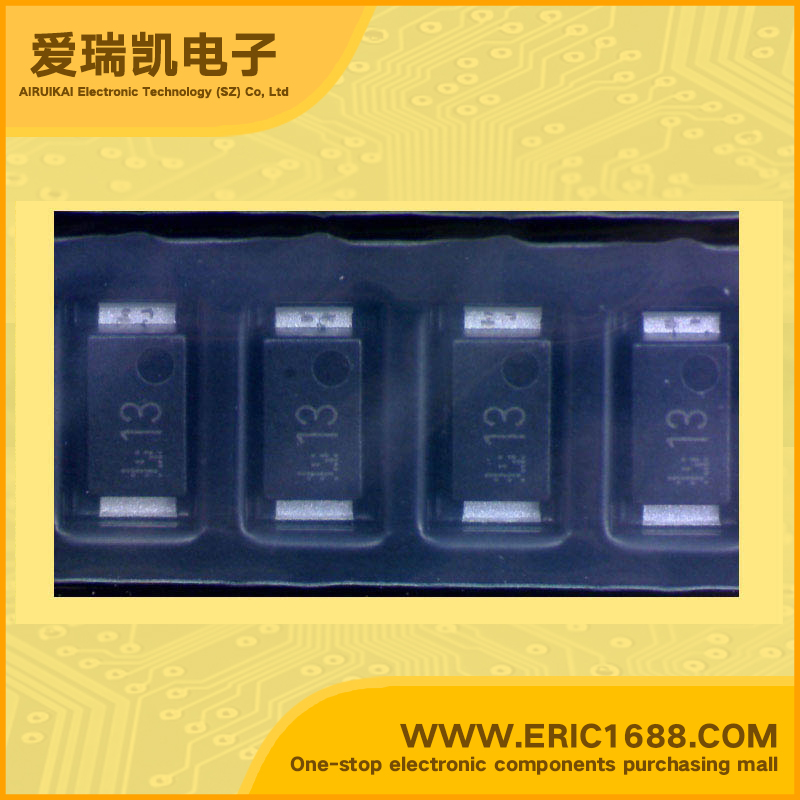

Mark / screen / code / typing：13
Manufacturer：
Date Code：12+ROHS
Package：M-FLAT/DO-214AC/SMA-13v
Standard Package：3000
Min Order：10

Hot selling goods

Product description

额定齐纳电压Vz(V)Zener Voltage 最小 min.	11.7V
平均 Typ.	13V
最大 max.	14.3V
误差 Tolerance
最大齐纳阻抗Zz(Ω) Dynamic Impedance	30Ω/ohm
最大反向漏电流IR(uA) Reverse Current	10uA
最大耗散功率Pd Power dissipation	2W
Description & Applications	TOSHIBA Zener Diode Silicon Diffused Type . Applications: Communication, Control and Measurement Equipment . Constant Voltage Regulation. Transient Suppressors. * Average power dissipation : P = 2.0 W . * Zener voltage : VZ = 12 V ~ 53 V . * Suitable for compact assembly due to small surface-mount package . “M-FLAT” (Toshiba package name).
描述与应用	东芝齐纳二极管硅扩散型。应用范围：通信，控制和测量设备。恒压调节。瞬态抑制器。平均功耗：P=2.0 W。齐纳电压VZ=12 V~53 V。 *适用于小型汇编由于小型表面贴装封装。 “M-FLAT的”（东芝包装名）。
