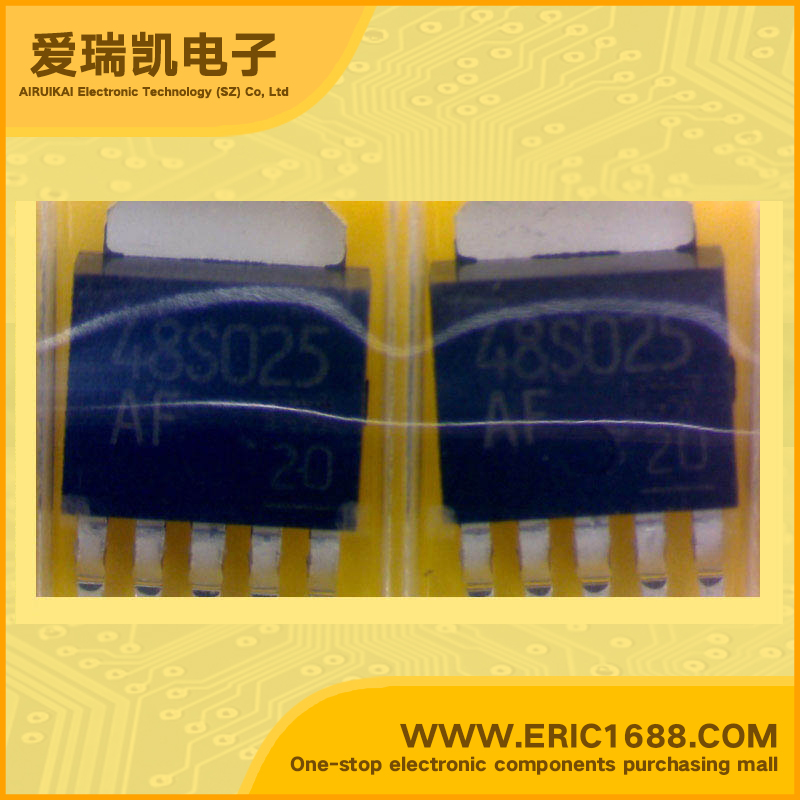

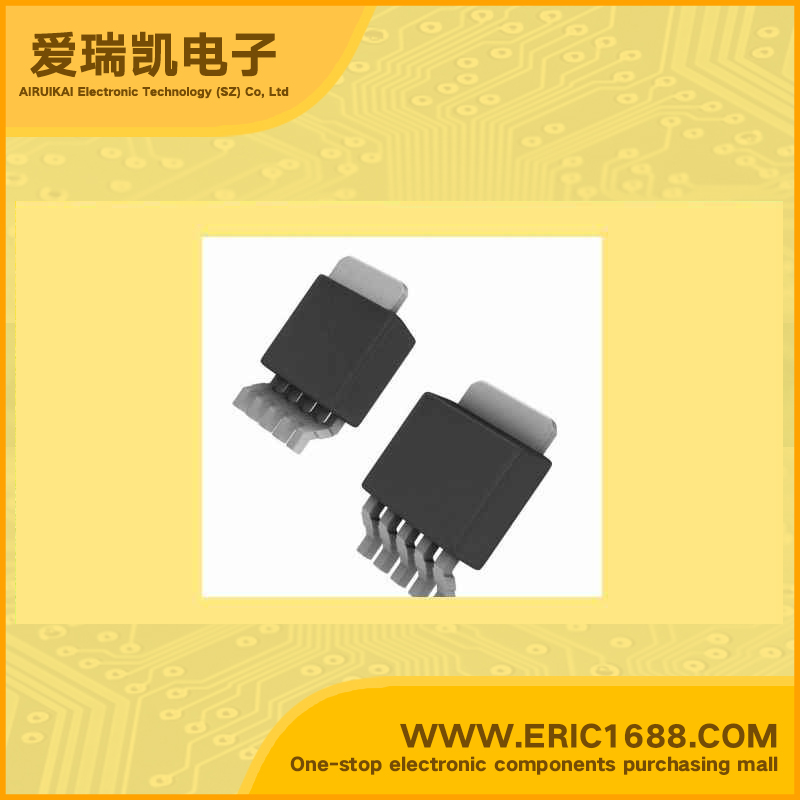

TA48S025AF LDO Voltage Regulator 2.5V 880mV/0.88V With Enable Pin TO-252-5 marking 48S025AF Short-Circuit Protection Over-Temperature Protection

Hot selling goods

Product description
电路数量
Number of Regulators
1
输入电压VIN
Voltage - Input
16V
输出电压VOUT
Voltage - Output
2.5V
输出电流Io
Current - Output
1A
最大压降VDO
Voltage - Dropout
880mV/0.88V
带使能脚EN/CE(ON/OFF功能)
With Enable Pin
有 Yes
最大耗散功率Pd
Power dissipation
1W
Description & Applications1A Output Current and Low Dropout Voltage Regulator with ON/OFF Control Switch •Built-in ON/OFF control function (active high) •Maximum output current : 1 A •Output voltage accuracy : VOUT ± 3% (@Tj = 25°C) •Low quiescent current : 850 μA (Typ.) (@IOUT = 0 A) (TA48S09AF : 900μA (Typ.)) •Low standby current (output OFF mode): 0.5μA (Typ.) •Low-dropout voltage : 0.5 V (Max) (@VOUT>= 1.8V, IOUT = 500m A) • Protection function : Over current protection / thermal shutdown
描述与应用1A输出电流和低压差稳压器,带ON / OFF控制开关 •内置的ON/ OFF控制功能(高电平有效) •最大输出电流:1 A •输出电压精度:VOUT±3%(@ TJ= 25°C) •低静态电流:850μA(典型值)(@ IOUT= 0 A)                                                     (TA48S09AF:900μA(典型值)) •低待机电流(输出OFF模式):0.5μA(典型值) •低压差电压:0.5 V(最大)(@ VOUT=1.8V,IOUT=5亿) •保护功能:过电流保护/热关机
