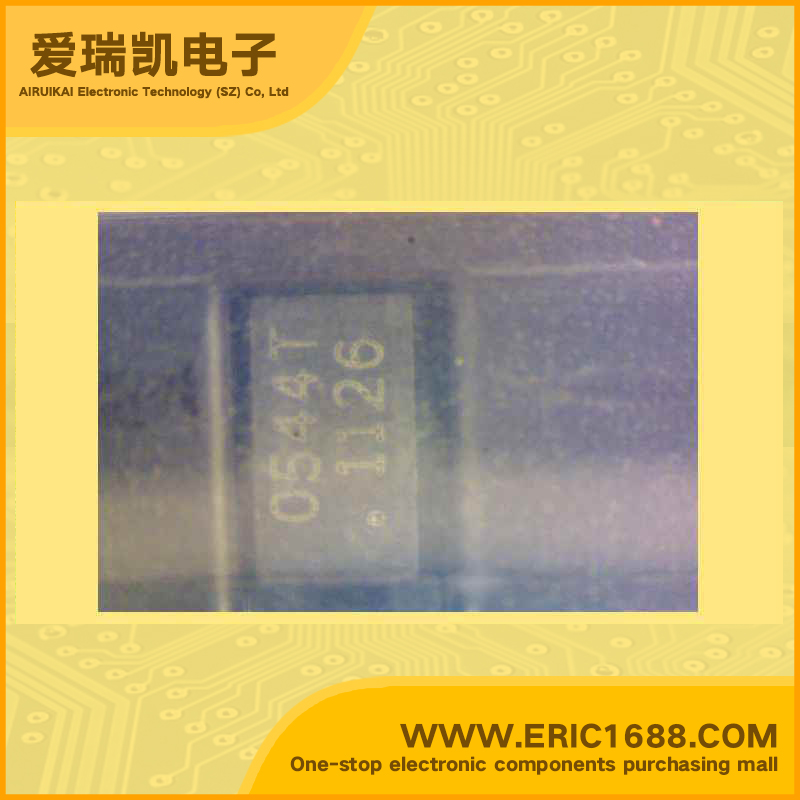

RCLAMP0544T.TCT Ultra Low Capacitance TVS Arrays SLP2010P8T 5V MARKING 0544T

Hot selling goods

Product description
极性
Polarization
双向 Bidirectional
反向关断电压/工作电压VRWM
Reverse Standoff Voltage
5V
反向击穿电压VBR
Breakdown Voltage
6.5V
峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation
75W
峰值脉冲电流IPPm
Peak Forward Surge Current
5A
额定耗散功率Pd
Power dissipation

Description & Applications FEATURES •Ultra-Low Capacitance1-Line ESD protection •ESD protection for high-speed data lines to IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC 61000-4-5 (Lightning) 5A (8/20µs) IEC 61000-4-4 (EFT) 40A (5/50ns) •Package design optimized for high speed lines •Flow-Through design •Protects two or four I/O lines •Low capacitance: 0.3pF typical (I/O to I/O) •Low clamping voltage •Low operating voltage: 5V •Solid-state silicon-avalanche technology
描述与应用 特性 •超低电容1线ESD保护 •高速数据线ESD保护 IEC61000-4-2(ESD)±15kV(空气),±8kV(接触) IEC61000-4-5(闪电)5A(8/20μS) IEC61000-4-4(EFT)40A(5/50ns) •包装设计优化的高速线路 •流动设计 •保护两个或四个I / O线 •低电容:0.3PF典型(I / O到I / O) •低钳位电压 •低工作电压:5V •固态硅雪崩科技
