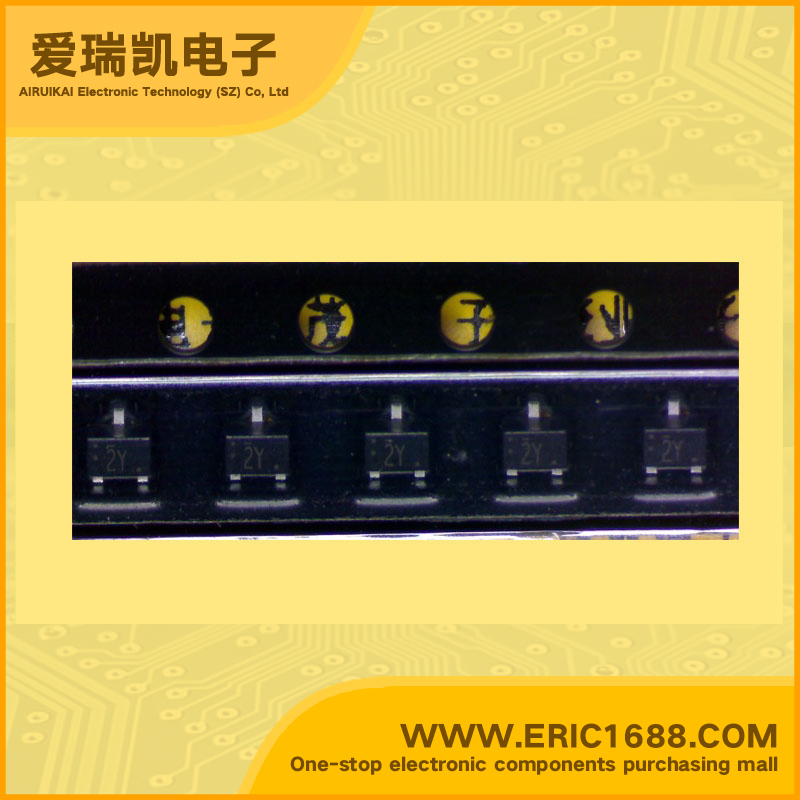

2SC3938GOL NPN 40V 0.1A 450MHZ HEF=60~200 MARKING 2Y
集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) |
40V |
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) |
40V |
集电极连续输出电流IC Collector Current(IC) |
100mA/0.1A |
截止频率fT Transtion Frequency(fT) |
450MHz |
直流电流增益hFE DC Current Gain(hFE) |
60~200 |
管压降VCE(sat) Collector-Emitter Saturation Voltage |
170mV/0.17V |
耗散功率Pc Power Dissipation |
150mW/0.15W |
Description & Applications | Silicon NPN epitaxial planer type For high speed switching High-speed switching Low collector to emitter saturation voltage VCE(sat) S-Mini type package, allowing downsizing of the equipment and automatic insertion through the tape packing and the magazine packing Allowing pair use with 2SA1739 |
描述与应用 | NPN硅外延平面型 用于高速切换 高速开关 低集电极到发射极饱和电压VCE(SAT) S-迷你型封装,通过带盒包装允许减小设备规模和自动插入 允许与2SA1739配对使用 |
