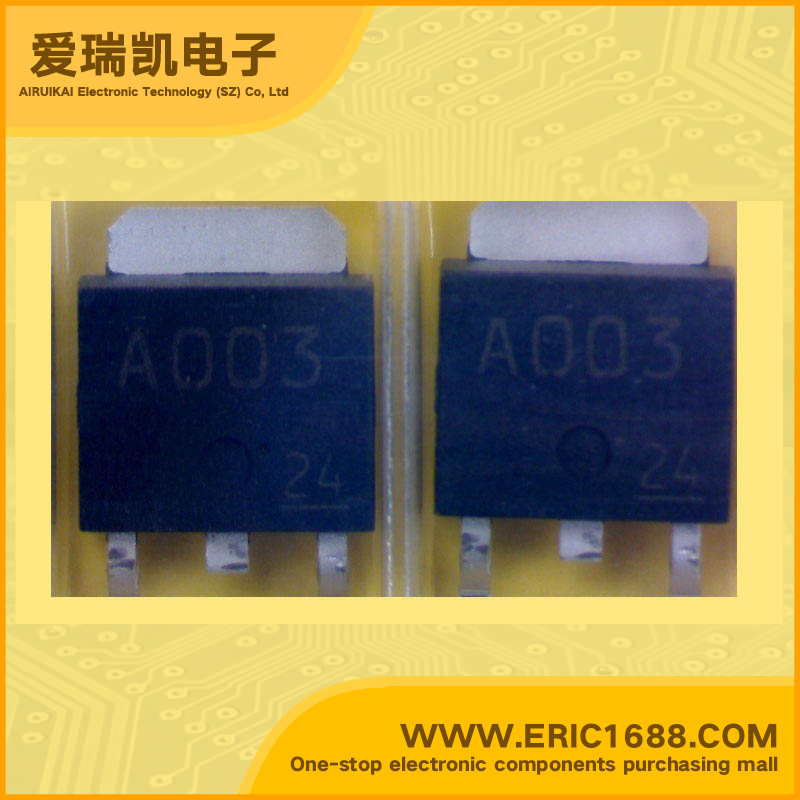

TTA003 PNP -80V -3A 100MHZ HEF=60~200 TO252 MARKING A003

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO)		 -80v
集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO)		 -80V
集电极连续输出电流IC
Collector Current(IC)		 -3A
截止频率fT
Transtion Frequency(fT)		 100MHZ
直流电流增益hFE
DC Current Gain(hFE)		 60~200
管压降VCE（sat）
Collector-Emitter SaturationVoltage		 -0.3V~-0.5V
耗散功率Pc
PoWer Dissipation		 10W
Description & Applications Bipolar Transistors Silicon PNP Epitaxial Type. * Power Amplifiers * Power Switching (1) Low collector saturation voltage: VCE(sat)= -0.5 V (max) (IC = -1 A, IB = -100 mA) (2) High-speed switching: tstg = 300 ns (typ.)
描述与应用 双极晶体管PNP硅外延型。 *功率放大器 *电源开关 （1）低集电极饱和电压VCE（sat）=-0.5 V（最大值）（IC= -1 A，IB=-100毫安） （2）高速开关：TSTG=300纳秒（典型值）
