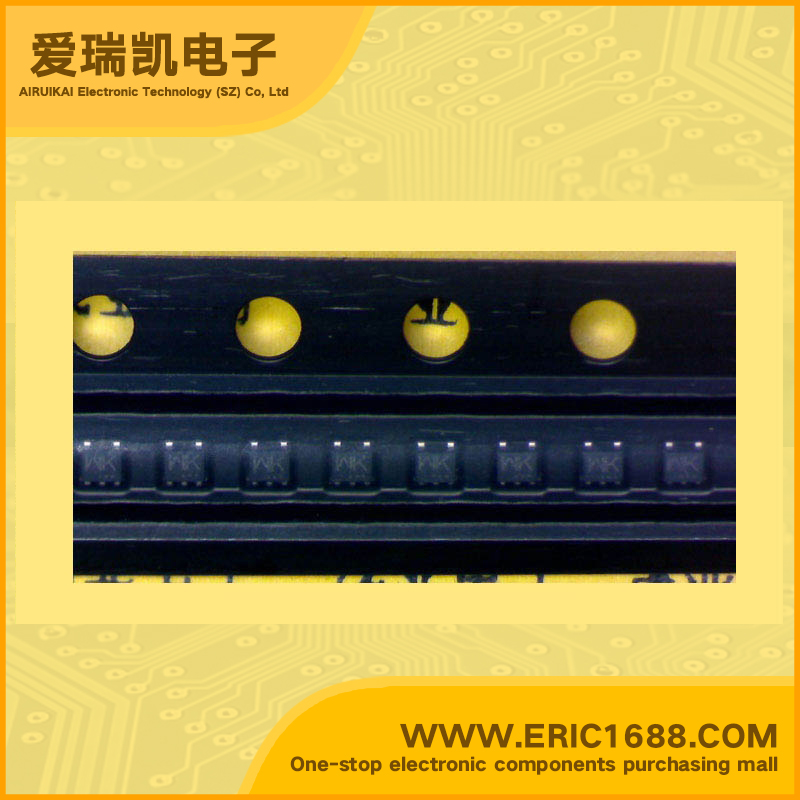

TC7SG14AFS
| 逻辑类型 Logic Type |
反相施密特触发器 Inverting Schmitt trigger |
| 电路数 Number of Circuits |
1 |
| 输入数 Number of Inputs |
2 |
| 电源电压Vcc Voltage - Supply |
0.9v~3.6V |
| 静态电流Iq Current - Quiescent (Max) |
10uA |
| 输出高，低电平电流 Current - Output High, Low |
-8mA,8mA |
| 低逻辑电平 Logic Level - Low |
|
| 高逻辑电平 Logic Level - High |
|
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL |
21ns @3.3V ，15pF |
| Description & Applications | Schmitt Inverter；High-level output current: IOH/IOL = ±8 mA (min) at VCC = 3.0 V • High-speed operation: tpd = 3.7 ns (typ.) at VCC = 3.3 V,15pF • Operating voltage range: VCC = 0.9~3.6 V • 5.5-V tolerant input. |
| 描述与应用 | 施密特反相器;高电平输出电流：IOH/ IOL=±8 mA（分钟） 在VCC= 3.0 V •高速操作：TPD= 3.7纳秒（典型值） 在VCC =3.3 V，15PF •工作电压范围：VCC= 0.9〜3.6 V •5.5-V宽容输入。 |
