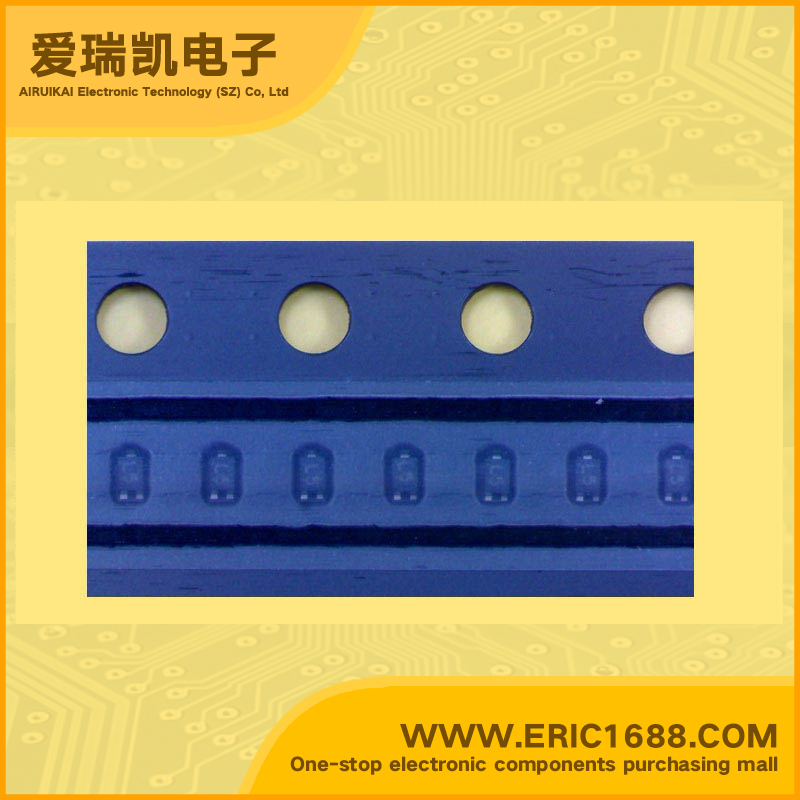

RN1106FS Bias Resistor built-in Transistor 20V 50MA R1=4.7KΩ R2=47KΩ FSM MARKING L5

Model：RN1106FS
Mark / screen / code / typing：L5
Manufacturer：
Date Code：12+ROHS 12+ROHS
Package：FSM
Standard Package：10000
Min Order：100

Hot selling goods

Product description

V(BR) CBO Collector-Base Voltage	50V
V(BR) CEO Collector-Emitter Voltage	50V
Collector Current(IC)	50MA
Input Resistance(R1)	4.7KΩ
Base-Emitter Resistance(R2)	47KΩ
Resistance Ratio (R1/R2)	0.1
DC Current Gain(hFE)	120
Transtion Frequency(fT)
Power dissipation (Pd)	50MW
Description & Applications	Switching, Inverter Circuit, Interface Circuit and Driver Circuit Applications
