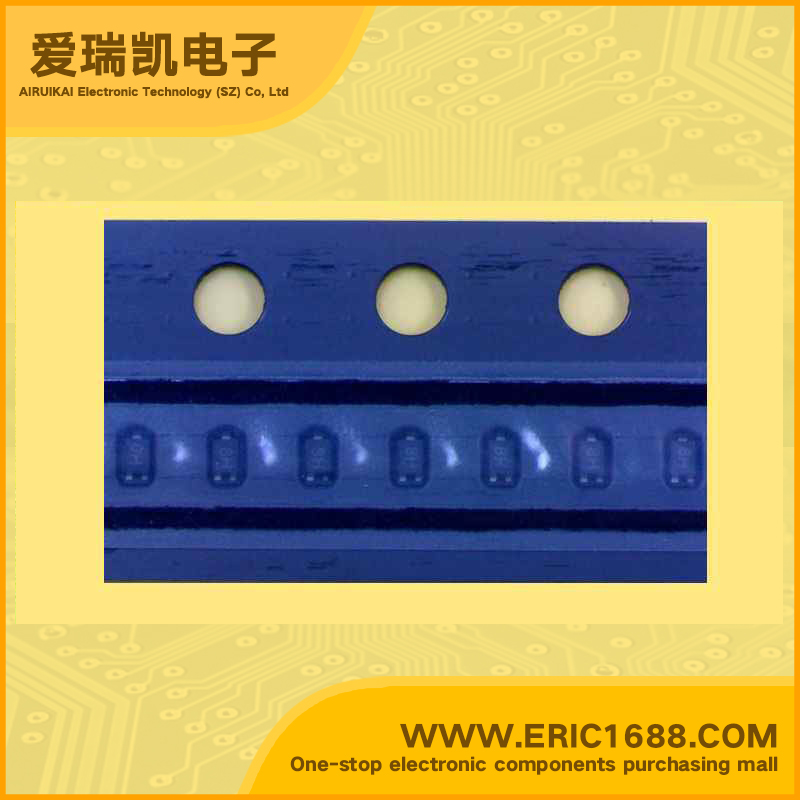

2SA2154-GR PNP -50V -0.1A 80MHZ HEF=200~400 MARKING 8H
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) |
-50V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) |
-50V |
| 集电极连续输出电流IC Collector Current(IC) |
-100mA/-0.1A |
| 截止频率fT Transtion Frequency(fT) |
80MHz |
| 直流电流增益hFE DC Current Gain(hFE) |
200~400 |
| 管压降VCE（sat） Collector-Emitter SaturationVoltage |
-300mV/-0.3V |
| 耗散功率Pc PoWer Dissipation |
50mW |
| Description & Applications | PNP Silicon epitaxial planar type General-Purpose Amplifier Applications Features . High voltage and high current .Excellent hFE linearity .High hFE . Complementary to 2SC6026 . |
| 描述与应用 | PNP硅外延平面型 通用放大器应用 特点 .高电压和高电流 .优秀的HFE线性 .高HFE .互补型2SC6026 . |
