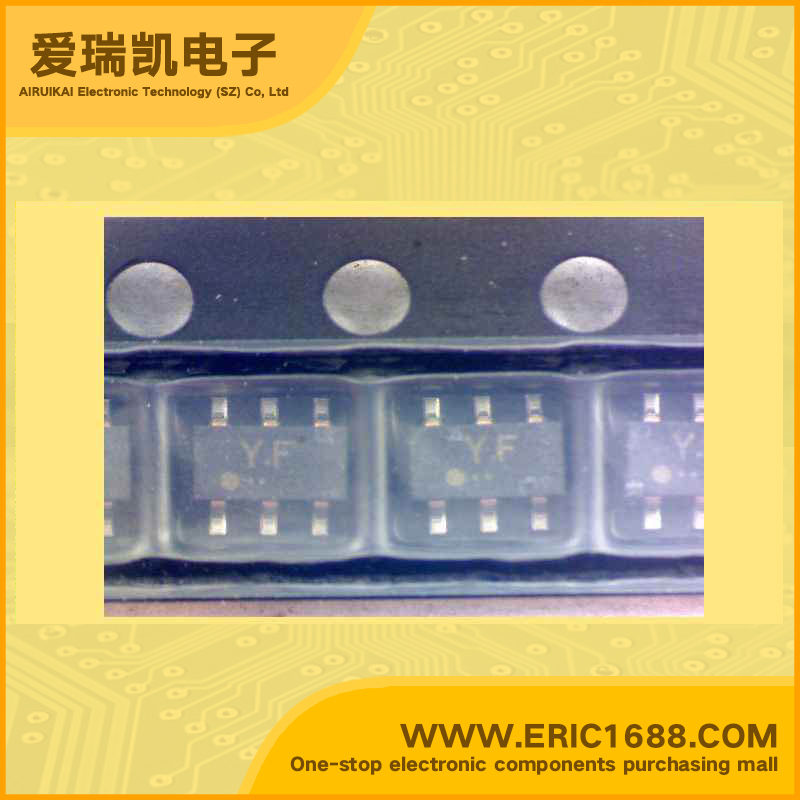

RN2606 PNP+PNP Complex Bipolar Digital Transistor -50V -0.1A 0.3W R1=4.7KΩ R2=47KΩ SOT-163/SM6/SOT23-6 marking YF switching inverting interface driver circuit

Hot selling goods

Product description

V(BR) CBO

Collector-Base Voltage

 -50V

V(BR) CEO

Collector-Emitter Voltage

 -50V
Collector Current(IC)  -0.1A
 Input Resistance(R1) 4.7 KΩ
Base-Emitter Resistance(R2)  47KΩ
Base-Emitter Input Resistance Ratio (R1/R2)  0.1
DC Current Gain(hFE)  80
Transtion Frequency(fT)  200MHZ
Power Dissipation (Pd)  300MW/0.3W
Description & Applications  Switching, Inverter Circuit, Interface Circuit
And Driver Circuit Applications

* Including two devices in SM6 (super mini type with 6 leads)
* With built-in bias resistors
* Simplify circuit design
* Reduce a quantity of parts and manufacturing process
