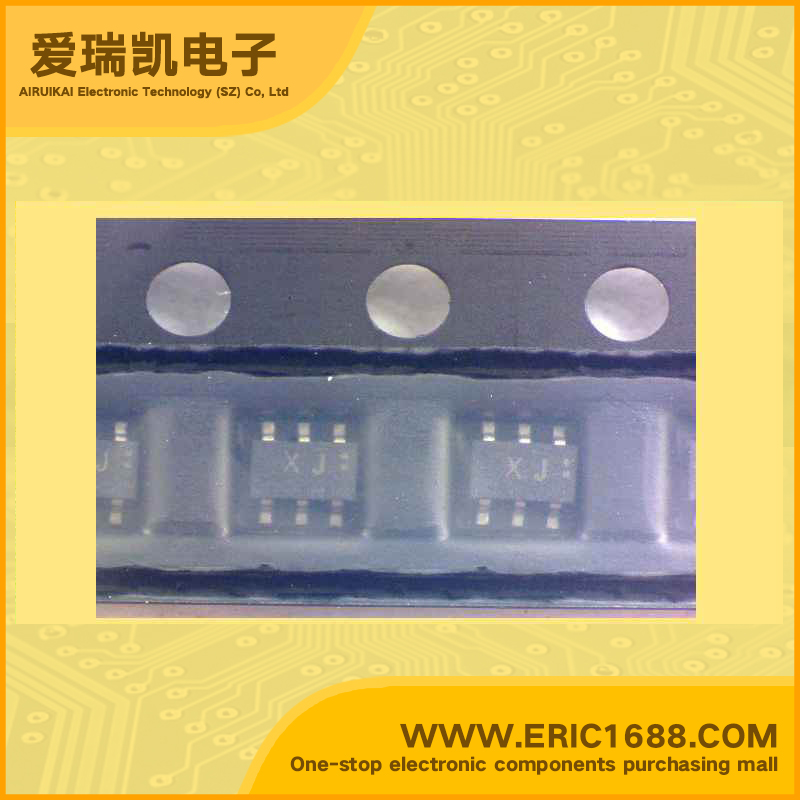

RN1909 Double npn Bias Resistor 50V 0.1A R1=47KΩ R2=22KΩ SOT363 MARKING XJ
|
V(BR) CBO Collector-Base Voltage |
50V |
|
V(BR) CEO Collector-Emitter Voltage |
50V |
| Collector Current(IC) | 100MA/0.1A |
| Input Resistance(R1) | 47KΩ |
| Base-Emitter Resistance(R2) | 22KΩ |
| Base-Emitter Input Resistance Ratio (R1/R2) | 2.1 |
| DC Current Gain(hFE) | 70 |
| Transtion Frequency(fT) | 250MHZ |
| Power Dissipation （Pd） | 0.2W |
| Description & Applications | Switching, Inverter Circuit, Interface Circuit
and Driver Circuit Applications
z Including two devices in US6 (ultra super mini type with 6 leads)
z With built-in bias resistors
z Simplify circuit design
z Reduce a quantity of parts and manufacturing process
|
