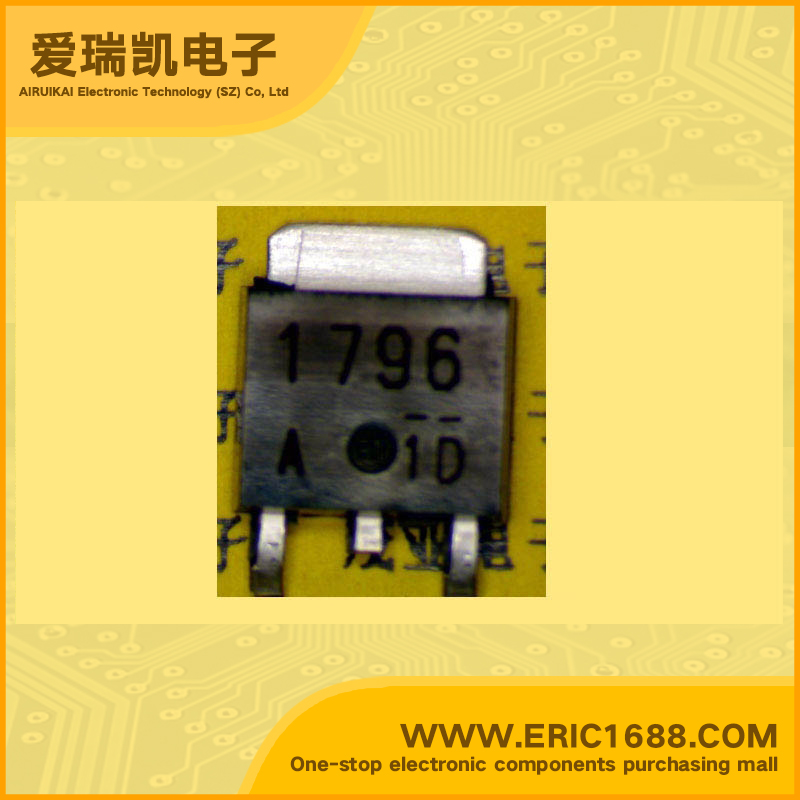

2SA1796 PNP transistors（BJT） -60V -7A 50MHz 70 -300mV/-0.3V TO-252/DPAK marking A1796

Model：2SA1796
Mark / screen / code / typing：A1796
Manufacturer：
Date Code：05+ 05+
Package：TO-252/DPAK
Standard Package：1500
Min Order：10

Hot selling goods

Product description

集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO)	-60V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO)	−40V
集电极连续输出电流IC Collector Current(IC)	-7A
截止频率fT Transtion Frequency(fT)	50MHz
直流电流增益hFE DC Current Gain(hFE)	70
管压降VCE（sat） Collector-Emitter SaturationVoltage	-300mV/-0.3V
耗散功率Pc PoWer Dissipation	10W
Description & Applications	switching power transistor
描述与应用	开关功率晶体管
