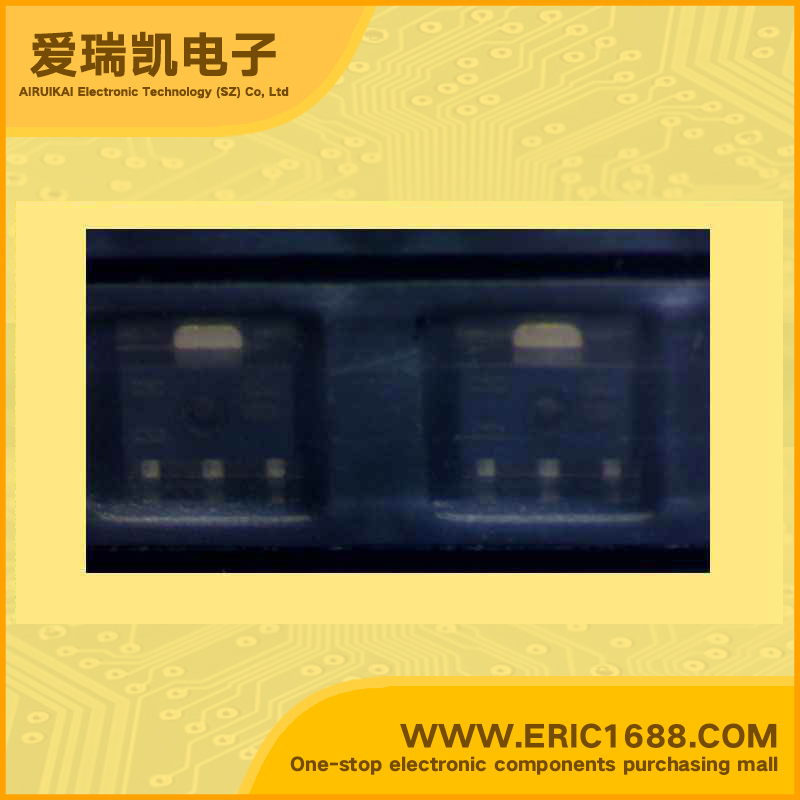

2SB1125 PNP transistors（BJT） -80V -700mA/-0.7A 200MHz 5000 -1.2V SOT-89/PCP marking BH motor driver/voltage regulator
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | -80V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | −50V |
| 集电极连续输出电流IC Collector Current(IC) | -700mA/-0.7A |
| 截止频率fT Transtion Frequency(fT) | 200MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 5000 |
| 管压降VCE（sat） Collector-Emitter SaturationVoltage | -1.2V |
| 耗散功率Pc PoWer Dissipation | 500mW/0.5W |
| Description & Applications | PNP Silicon epitaxial planar transistor applications Applications Motors drivers, printer hammer, voltage regulators control,relay drivers Feature High DC current gain Large current capacity and wide ASO Fast switching speed Very small size making it easy to provide highdensity, small-sized hybrid IC’s |
| 描述与应用 | PNP硅外延平面晶体管 应用 马达驱动器，打印机锤，电压调节器控制，继电器驱动 特点 高直流电流增益 大电流容量，广ASO 开关速度快 规模非常小，因此很容易提供高密度，小型混合IC |
