2SB970(X)-S PNP transistors（BJT） -15V -500mA/-0.5A 130MHz 180~350 -160mV/-0.16V SOT-23/SC-59 marking OAS AFoutput amplifier

Model：2SB970(X)-S

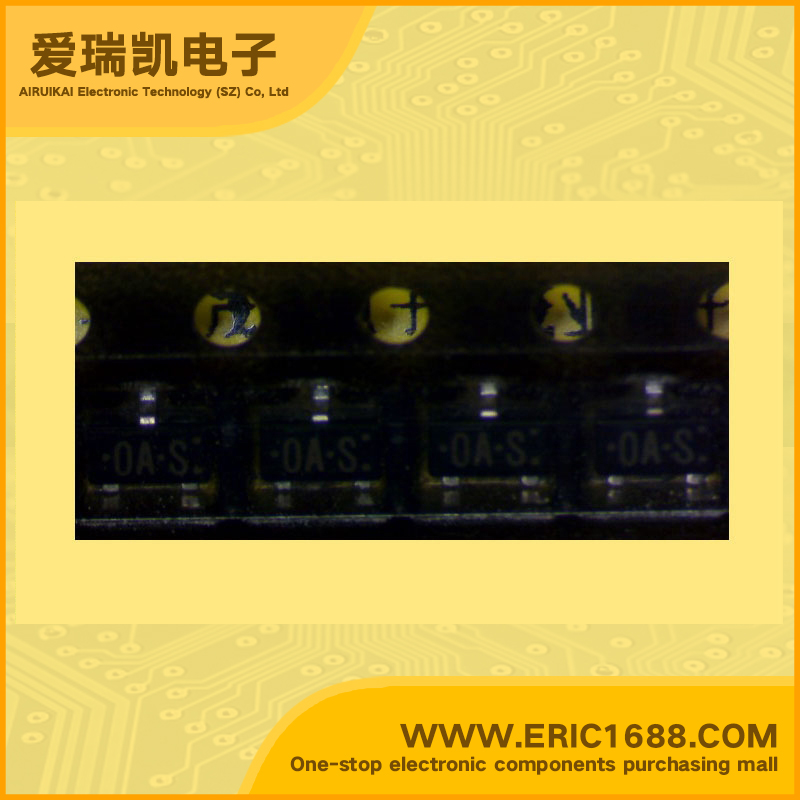

Mark / screen / code / typing：OAS
Manufacturer：
Date Code：05+
Package：SOT-23/SC-59
Standard Package：3000
Min Order：10

Hot selling goods

Product description

集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO)	-15V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO)	-10V
集电极连续输出电流IC Collector Current(IC)	−500mA/-0.5A
截止频率fT Transtion Frequency(fT)	130MHz
直流电流增益hFE DC Current Gain(hFE)	180~350
管压降VCE（sat） Collector-Emitter SaturationVoltage	-160mV/-0.16V
耗散功率Pc PoWer Dissipation	200mW/0.2W
Description & Applications	AF output amplifier； low Vce
描述与应用	AF输出放大器; 低Vce

List of related models

Commodity Description	Supplier model	Manufacturer	Explain	Stock
2SB970-Q PNP transistors（BJT） -15V -500mA/-0.5A 130MHz 100~155 -160mV/-0.16V SOT-23/SC-59 marking IRQ AFoutput amplifier	2SB970-Q Mark：1RQ Package：SOT-23/SC-59	-	Batch number：05+	2000 Min Order:10
2SB970-R PNP transistors（BJT） -15V -500mA/-0.5A 130MHz 130~220 -160mV/-0.16V SOT-23/SC-59 marking 1RR AFoutput amplifier	2SB970-R Mark：1RR Package：SOT-23/SC-59	-	Batch number：05+ 05+rohs	74030 Min Order:10
2SB970-S PNP transistors（BJT） -15V -500mA/-0.5A 130MHz 180~350 -160mV/-0.16V SOT-23/SC-59 marking IRS AFoutput amplifier	2SB970-S Mark：1RS Package：SOT-23/SC-59	-	Batch number：05+ 05+rohs	25400 Min Order:10
2SC1009 NPN Transistors(BJT) 50V 50mA 250MHz 60~120 300mV/0.3V SOT-23/SC-59 marking FA3 high-frequency amplifier switch	2SC1009 Mark：FA3 Package：SOT-23/SC-59	-	Batch number：05+	600 Min Order:10
2sc1009A NPN Transistors(BJT) 50V 50mA 250MHz 60~120 300mV/0.3V SOT-23/SC-59 marking FA3 high-frequency amplifier switch	2SC1009A Mark：FA4 Package：SOT-23/SC-59	-	Batch number：07+16Rnopb 06+NOPB864KM+8300	933800 Min Order:10
2SC1621 NPN Transistors(BJT) 40V 200mA/0.2A 500MHz 40~80 250mV/0.25V SOT-23/SC-59 marking B2 fast switch	2SC1621 Mark：B2 Package：SOT-23/SC-59	-	Batch number：04+ 05+	60550 Min Order:10
2SC1621 NPN Transistors(BJT) 40V 200mA/0.2A 500MHz 60~120 250mV/0.25V SOT-23/SC-59 marking B3 highspeed amplifier	2SC1621 Mark：B3 Package：SOT-23/SC-59	-	Batch number：05+ 05+NOPB400	156800 Min Order:10
