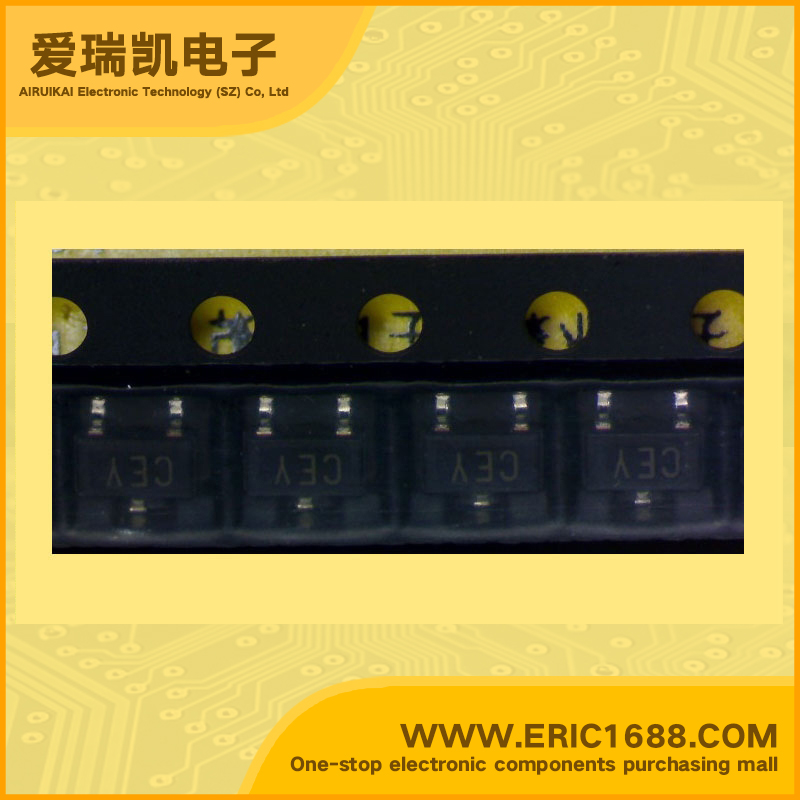

2SC3325-y NPN Transistors(BJT) 50V 500mA/0.5A 300MHz 120~240 250mV/0.25V SOT-23/SC-59 marking CEY radio low power amplifier
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 50V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 50V |
| 集电极连续输出电流IC Collector Current(IC) | 500mA/0.5A |
| 截止频率fT Transtion Frequency(fT) | 300MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 120~240 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | 250mV/0.25V |
| 耗散功率Pc Power Dissipation | 200mW/0.2W |
| Description & Applications | NPN Silicon epitaxial Transistors Audio frequency low power amplifier applications Driver stage amplifier applications Excellent hFE linearity High voltage small package Complementary to 2SA1313 |
| 描述与应用 | NPN硅外延晶体管 音频频率低功耗放大器应用 驱动级放大器的应用 优秀HFE线性 高压 小包装 互补型2SA1313 |
