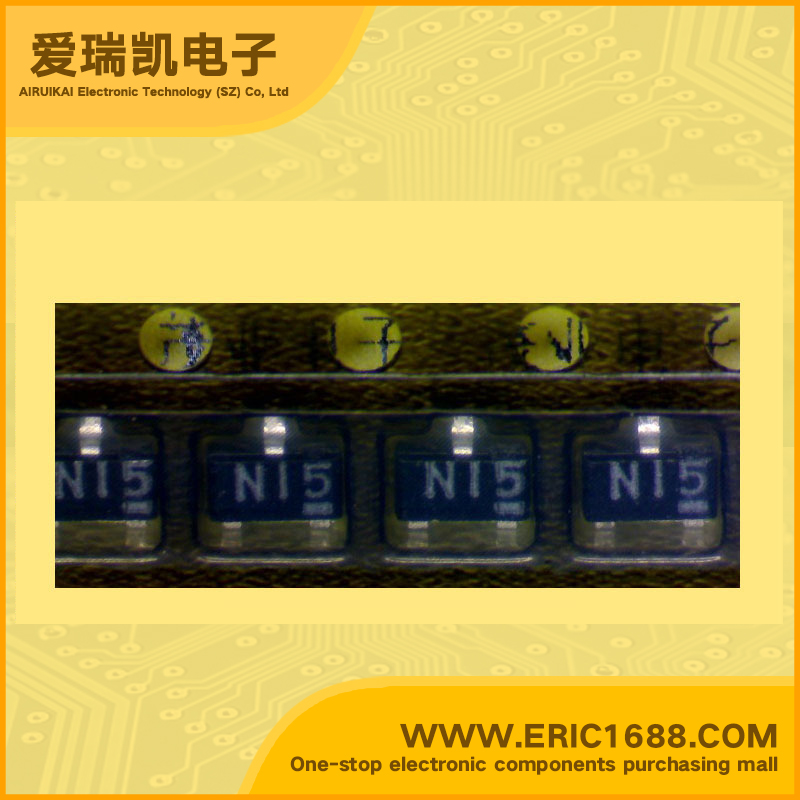

2SC3360 NPN Transistors(BJT) 200V 100mA/0.1A 160MHz 90~180 300mV/0.3V SOT-23/SC-59 marking N15 high voltage amplifier switch
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) |
200V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) |
200V |
| 集电极连续输出电流IC Collector Current(IC) |
100mA/0.1A |
| 截止频率fT Transtion Frequency(fT) |
160MHz |
| 直流电流增益hFE DC Current Gain(hFE) |
90~180 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage |
300mV/0.3V |
| 耗散功率Pc Power Dissipation |
200mW/0.2W |
| Description & Applications | NPN Silicon epitaxial Transistors High voltage amplifier and switching Features High voltage High DC current gain Complementary to 2SA1330 |
| 描述与应用 | NPN硅外延晶体管 高电压放大器和开关 特点 高压 高直流电流增益 互补型2SA1330 |
