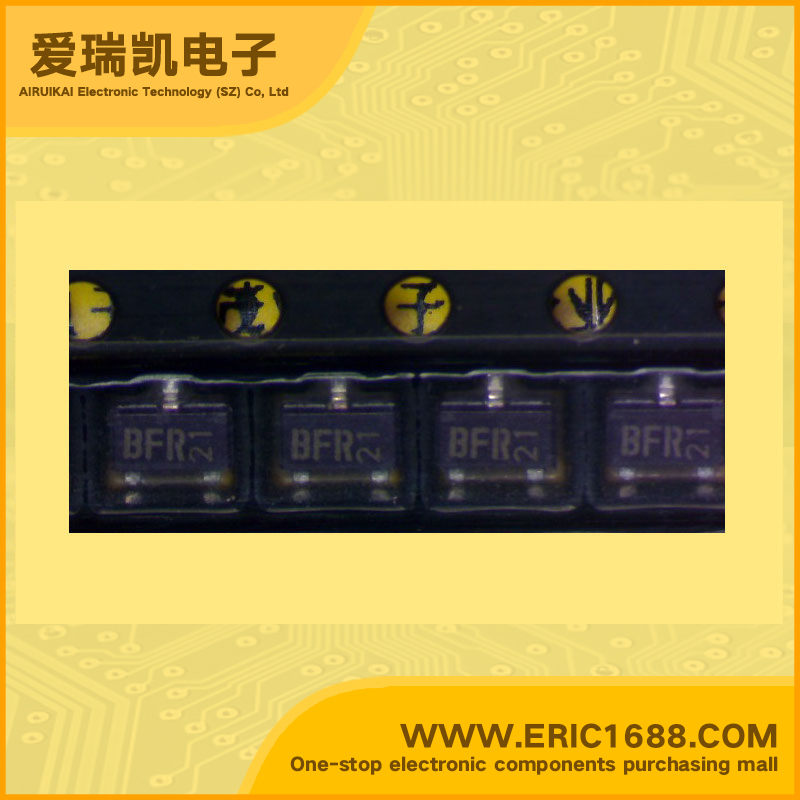

2SC4642K NPN Transistors(BJT) 50V 100mA/0.1A 180MHz 180~560 <400mV/0.4V SOT-23/SC-59/SMT3 marking BFR
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 50V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 25V |
| 集电极连续输出电流IC Collector Current(IC) | 100mA/0.1A |
| 截止频率fT Transtion Frequency(fT) | 180MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 180~560 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | <400mV/0.4V |
| 耗散功率Pc Power Dissipation | 200mW/0.2W |
| Description & Applications | Features •small output capacitance Cob=2.0pF(Typ) •Low saturation voltage between collector and emitter Vce(sat)=0.4V(max) |
| 描述与应用 | 特点 •小的输出电容科夫=2.0PF（典型值） •低饱和电压与集电极和发射极VCE（SAT）=0.4V（最大） |
