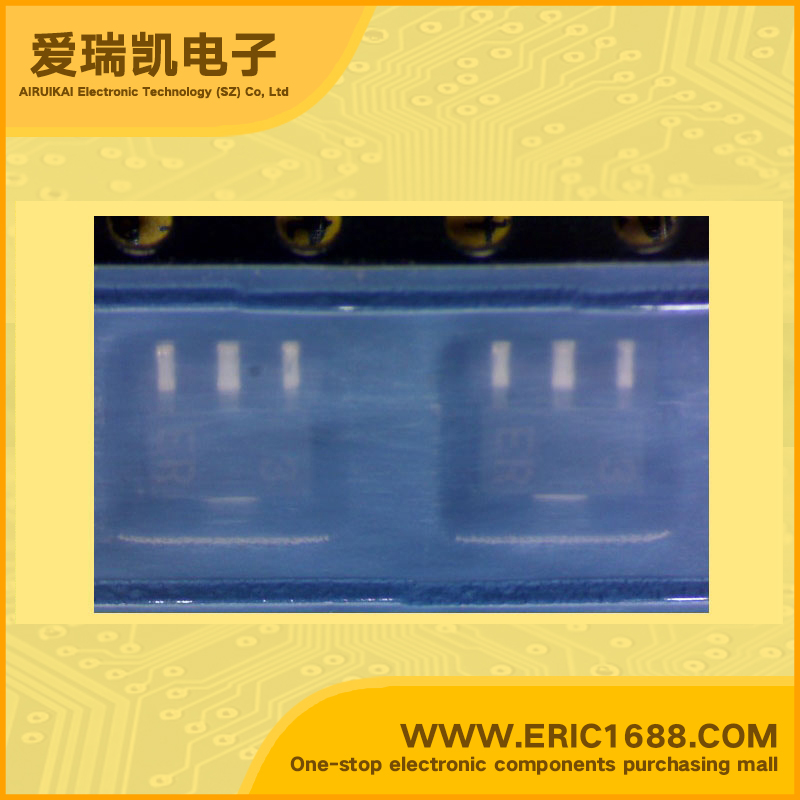

2SC4807ER NPN Transistors(BJT) 20V 200mA/0.2A 4.4Ghz 50~250 SOT-89/UPAK marking ER

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO)
20V
集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO)
15V
集电极连续输出电流IC
Collector Current(IC)
200mA/0.2A
截止频率fT
Transtion Frequency(fT)
4.4Ghz
直流电流增益hFE
DC Current Gain(hFE)
50~250
管压降VCE(sat)
Collector-Emitter Saturation Voltage
耗散功率Pc
Power Dissipation
800mW/0.8W
Description & ApplicationsFeatures •Silicon NPN epitaxial planar type •High gain bandwidth product fT= 4.4 GHz Typ •High output power 1 dB Power compression point Pcp = 24 dBm Typ at VCE= 5V , IC = 100 mA , f = 900 MHz Application •VHF / UHF wide band amplifier
描述与应用特点 •NPN硅外延平面型 •高增益带宽乘积fT=4.4 GHz的典型 •高输出功率1 dB功率压缩点PCP =24 dBm(典型值)在VCE=5V,IC= 100 mA时,F =900兆赫 应用 •VHF / UHF宽频带放大器
