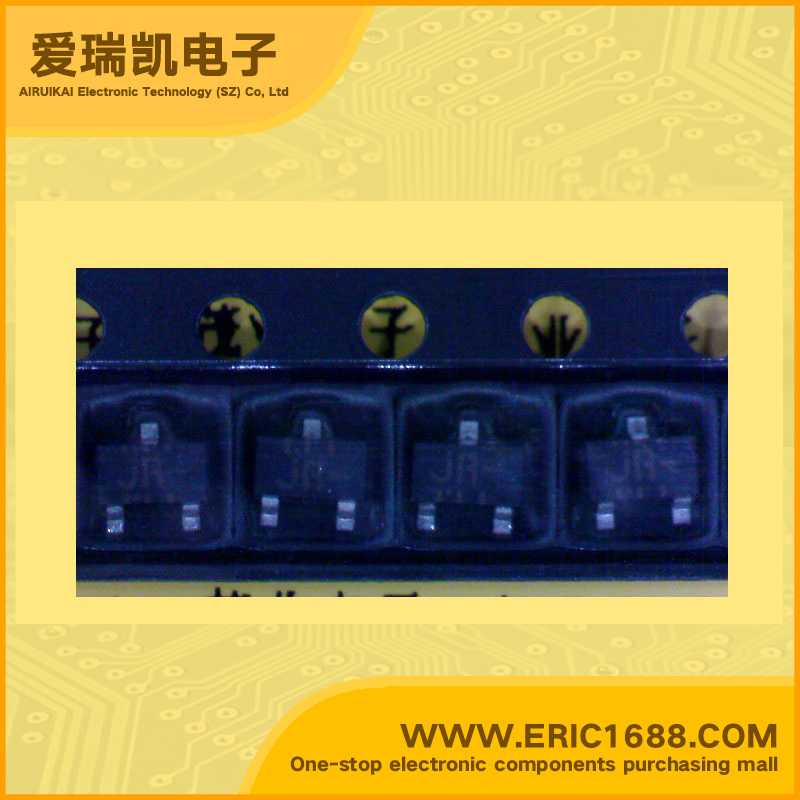

2SC5773JR-TL-E NPN Transistors(BJT) 15V 80mA 10.8Ghz 80~160 SOT-23/SC-59/MPAK marking JR UHF/VHF wide band amplifier
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 15V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 6V |
| 集电极连续输出电流IC Collector Current(IC) | 80mA |
| 截止频率fT Transtion Frequency(fT) | 10.8Ghz |
| 直流电流增益hFE DC Current Gain(hFE) | 80~160 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | |
| 耗散功率Pc Power Dissipation | 700mW/0.7W |
| Description & Applications | Silicon NPN Epitaxial UHF / VHF wide band amplifier Features • High gain bandwidth product fT = 10.8 GHz typ. • High power gain and low noise figure ; PG = 11.9 dB typ., NF = 1.1 dB typ. at f = 900 MHz |
| 描述与应用 | NPN硅外延 UHF/ VHF宽频带放大器 特点 •高增益带宽积 FT =10.8 GHz的典型。 •高功率增益和低噪声系数; PG=11.9 dB，NF= 1.1 dB。在f =900 MHz的 |
