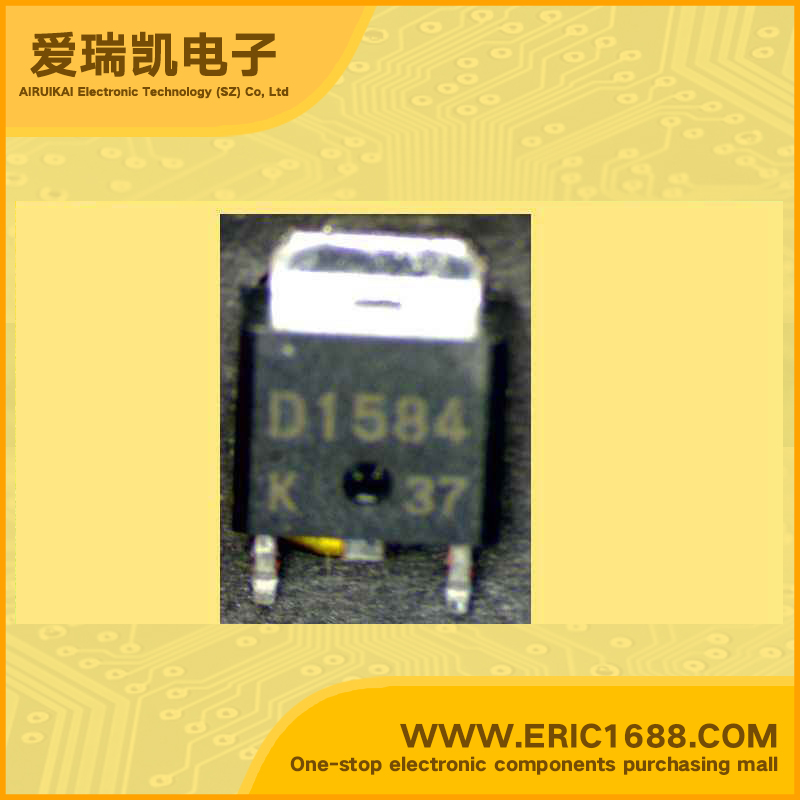

2sd1584-z-e1 NPN Transistors(BJT) 60V 3A 120MHz 800~3200 250mV/0.25V TO-252/DPAK marking d1584

Model：2sd1584-z-e1
Mark / screen / code / typing：d1584
Manufacturer：
Date Code：05+nopb
Package：TO-252/DPAK
Standard Package：2000
Min Order：10

Hot selling goods

Product description

集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO)	60V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO)	60V
集电极连续输出电流IC Collector Current(IC)	3A
截止频率fT Transtion Frequency(fT)	120MHz
直流电流增益hFE DC Current Gain(hFE)	800~3200
管压降VCE（sat） Collector-Emitter Saturation Voltage	250mV/0.25V
耗散功率Pc Power Dissipation	2W
Description & Applications	SMD type transistor NPN Silicon Epitaxial Transistor Features Low VCE(sat). High hFE.
描述与应用	SMD型晶体管 NPN硅外延晶体管特点低VCE（饱和）。 HFE高。
