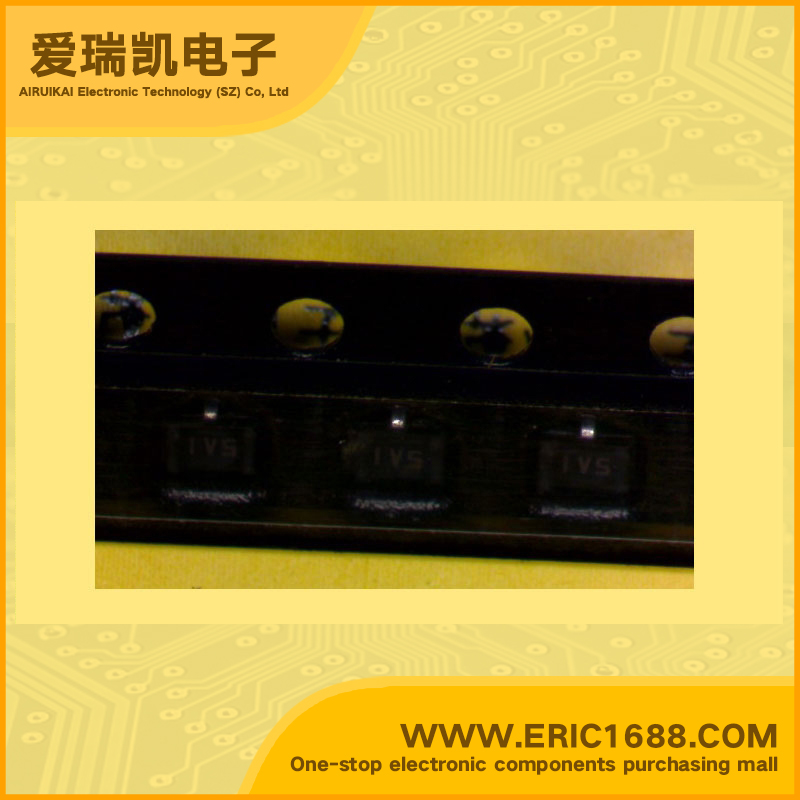

2SD1824-S NPN Transistors(BJT) 100V 50mA 90MHz 600~1200 50mV SOT-323/SC-70 marking IVS low-frequency amplifier
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 100V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 100V |
| 集电极连续输出电流IC Collector Current(IC) | 50mA |
| 截止频率fT Transtion Frequency(fT) | 90MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 600~1200 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | 50mV |
| 耗散功率Pc Power Dissipation | 150mW/0.15W |
| Description & Applications | Silicon NPN epitaxial planer type *low-frequency amplification Features *High foward current transfer ratio hFE. *Low collector to emitter saturation voltage VCE(sat) *High emitter to base voltage VEBO. |
| 描述与应用 | NPN硅外延平面型 *低频放大 特点 *高正向电流传输比HFE。 *低集电极到发射极饱和电压VCE（SAT） *高发射器基极电压VEBO。 |
