BCP72M PNP Transistor -10V -3A HEF=85~475 SOT-153/SC-595 marking PA switch and digital circuit application

Model：BCP72M

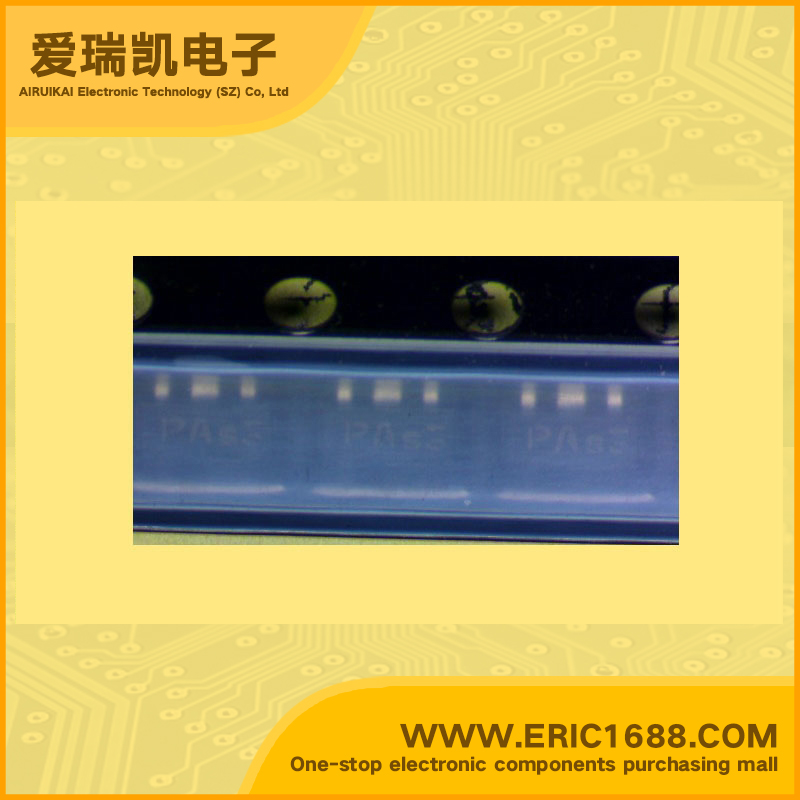

Mark / screen / code / typing：PA
Manufacturer：
Date Code：05+ 05+
Package：SOT-153/SC-595
Standard Package：3000
Min Order：10

Hot selling goods

Product description

V(BR) CBO Collector-Base Voltage	-10V
V(BR) CEO Collector-Emitter Voltage	-10V
Collector Current(IC)	-3A
Transtion Frequency(fT)	100MHZ
DC Current Gain(hFE)	25~475
VCE(sat) Collector-Emitter Saturation Voltage	-0.15V
Power Dissipation (Pd)	1.7W
Description & Applications	PNP Silicon AF Power Transistor Preliminary data • Drain switch for RF power amplifier stages • For AF driver and output stages • High collector current • Low collector-emitter saturation voltage
Technical Documentation Download	Read Online
