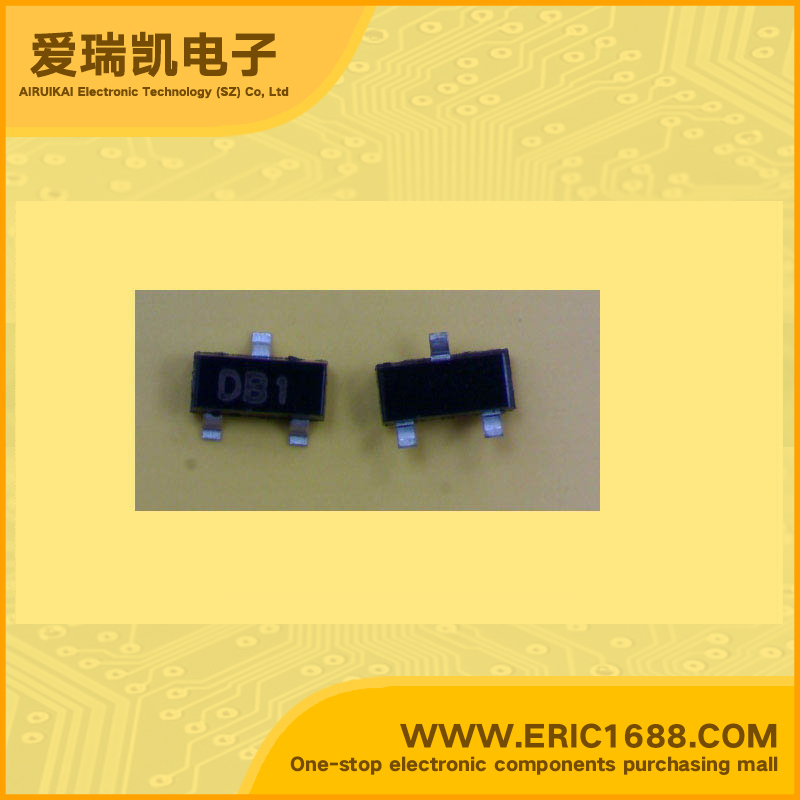

CMPSH-3ATR common cathodeSBD Schottky Barrier Diodes 30V 100mA/0.1A 1V SOT-23/SC-59 marking DB1 fast switch low forward voltage

Model：CMPSH-3ATR
Mark / screen / code / typing：DB1
Manufacturer：
Date Code：05+
Package：SOT-23/SC-59
Standard Package：3000
Min Order：10

Hot selling goods

Product description

反向电压Vr Reverse Voltage	30V
平均整流电流Io AVerage Rectified Current	100mA/0.1A
最大正向压降VF Forward Voltage(Vf)	1V
最大耗散功率Pd Power dissipation	350MW/0.35W
Description & Applications	CMPSH-3 Series types are Silicon Schottky diodes designed for surface mount fast switching applications requiring a low forward voltage drop.Common anode Schottky barrier diodes.
描述与应用	快速开关,低正向压降共阳肖特基二极管。
