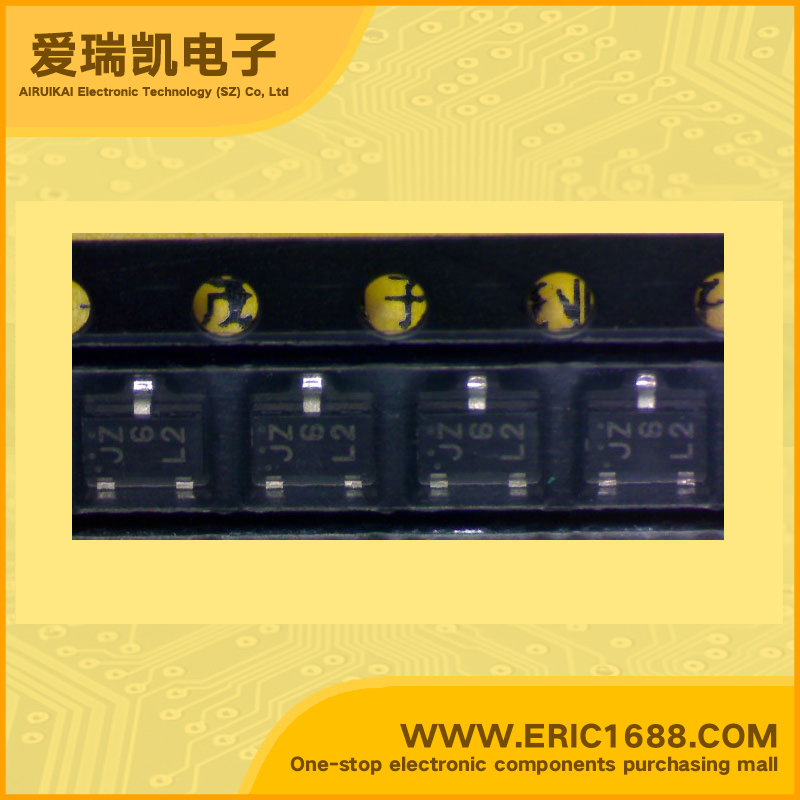

CPH3324 MOSFET P-Channel -60V -1.2A 0.4ohm SOT-23 marking JZ ultra high-speed switch 4V drive

Model：CPH3324
Mark / screen / code / typing：JZ
Manufacturer：
Date Code：06NOPB
Package：SOT-23/SC-59
Standard Package：3000
Min Order：10

Hot selling goods

Product description

最大源漏极电压Vds Drain-Source Voltage	-60V
最大栅源极电压Vgs(±) Gate-Source Voltage	20V
最大漏极电流Id Drain Current	-1.2A
源漏极导通电阻Rds Drain-Source On-State Resistance	0.4Ω @-600mA,-10V
开启电压Vgs（th） Gate-Source Threshold Voltage	-1.2--2.6V
耗散功率Pd Power Dissipation	1W
Description & Applications	Features · Low ON resistance. · Ultrahigh-speed switching. · 4V drive.
描述与应用	·低导通电阻。 ·超高速开关。 ·4V驱动器
