CPH5517 PNP+NPN Complex Bipolar Transistor SOT-153/CPH5/SC-74A marking EM switch and digital circuit application

Model：CPH5517
Mark / screen / code / typing：EM
Manufacturer：
Date Code：05NOPB 05+NOPB

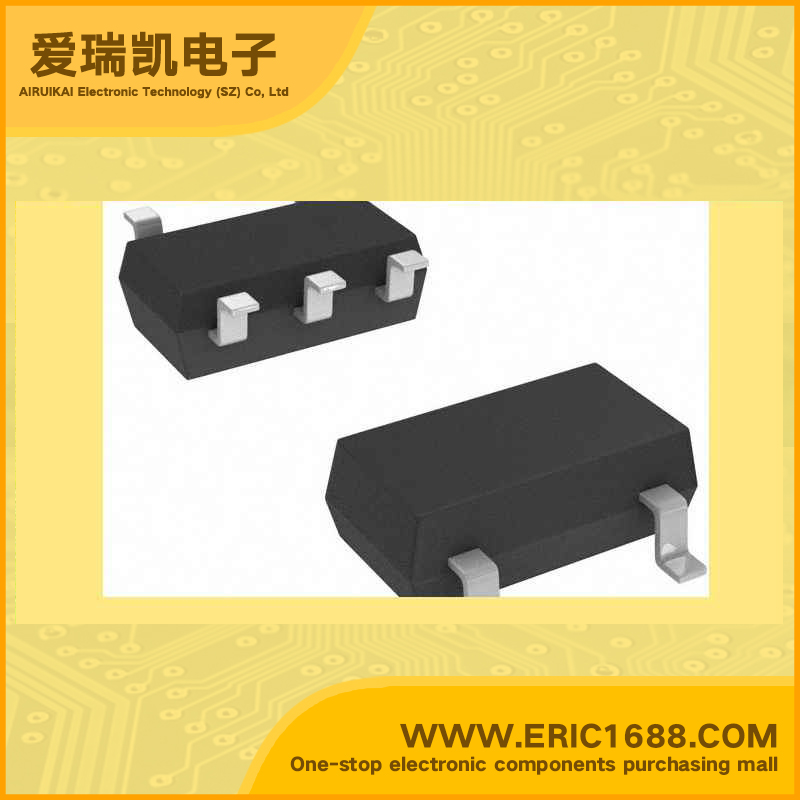

Package：SOT-153/CPH5/SC-74A
Standard Package：3000
Min Order：10

Hot selling goods

Product description

V(BR) CBO Collector-Base Voltage TR1/TR2	-50V/60V
V(BR) CEO Collector-Emitter Voltage TR1/TR2	-50V / 50V
Collector Current(IC) TR1/TR2	-1A / 1A
Transtion Frequency(fT) TR1/TR2	420MHZ / 420MHZ
DC Current Gain(hFE) TR1/TR2	200~560 / 200~560
VCE (sat) Collector-Emitter Saturation Voltage TR1/TR2
Power Dissipation (Pd) TR1/TR2	0.9W
Description & Applications	PNP / NPN Epitaxial Planar Silicon Transistor High-Current Switching Applications relay drivers, lamp drivers, motor drivers.
Technical Documentation Download	Read Online
