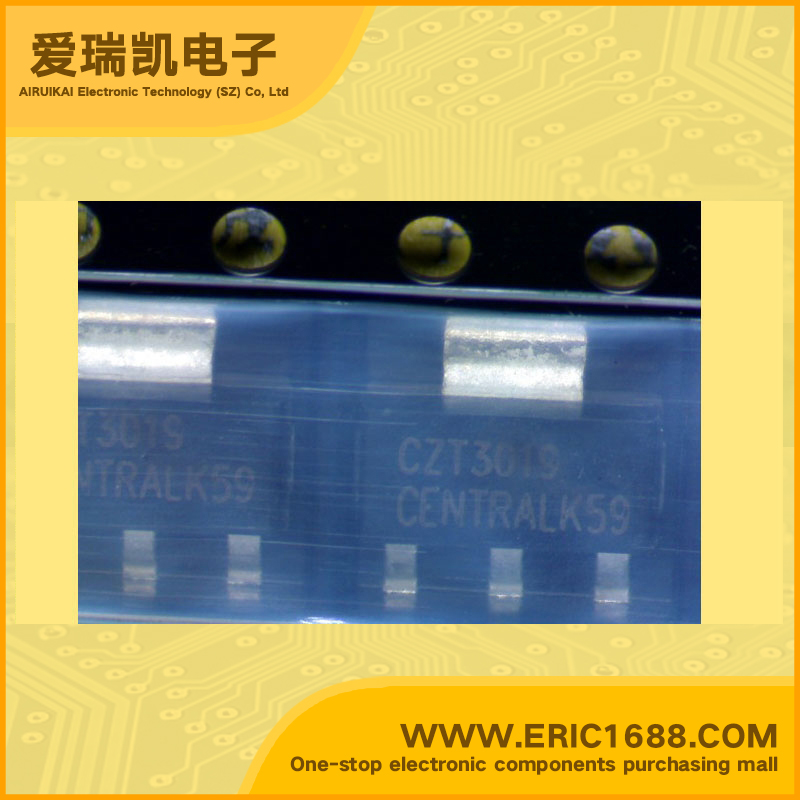

CZT3019 NPN Transistors(BJT) 120V 1A 100MHz 100~300 500mV/0.5V SOT-223 marking CZT3019 high current general amplifier
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 120V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 80V |
| 集电极连续输出电流IC Collector Current(IC) | 1A |
| 截止频率fT Transtion Frequency(fT) | 100MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 100~300 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | 500mV/0.5V |
| 耗散功率Pc Power Dissipation | 2W |
| Description & Applications | NPN SILICON TRANSISTOR The CENTRAL SEMICONDUCTOR CZT3019 type is an NPN silicon transistor manufactured by the epitaxial planar process, epoxy molded in a surface mount package, designed for high current general purpose amplifier applications. |
| 描述与应用 | NPN硅晶体管 中央半导体CZT3019类型是NPN硅晶体管由外延平面工艺，环氧树脂模压在一个表面贴装封装，为高电流的通用放大器应用设计制造。 |
