EMC5 NPN+PNP Complex Bipolar Digital Transistor 10V/-20V 30mA/-100mA 150mW/0.15W SOT-553/EMT5 marking C5 switching inverting interface driver circuit

Model：EMC5

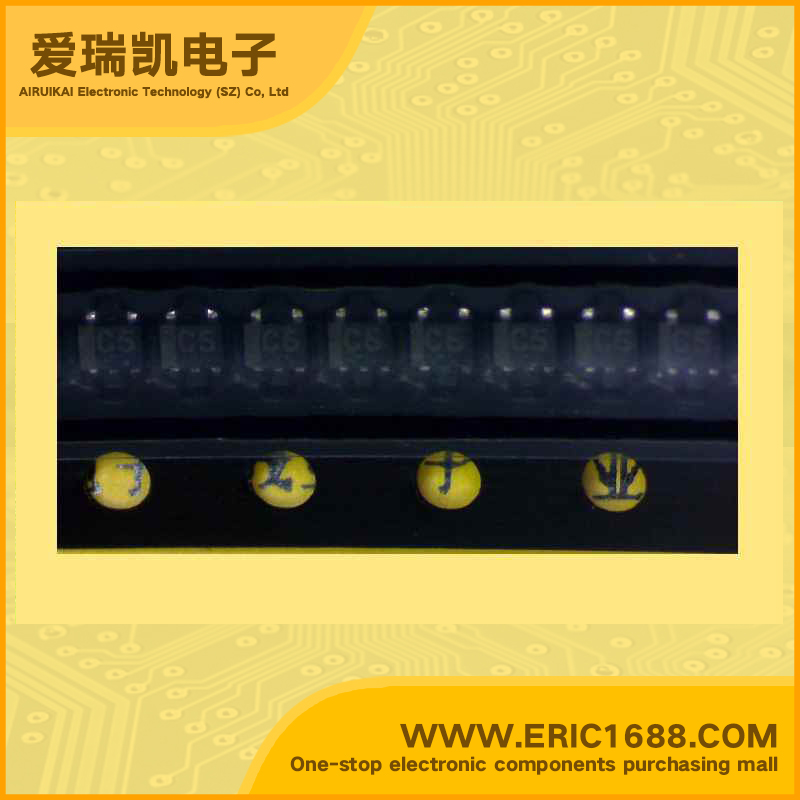

Mark / screen / code / typing：C5
Manufacturer：
Date Code：05+
Package：SOT-553/EMT5
Standard Package：8000
Min Order：100

Hot selling goods

Product description

Collector-Base Voltage(VCBO) Q1/Q2	10V/-20V
Collector-Emitter Voltage(VCEO) Q1/Q2	50V/-50V
Collector Current(IC) Q1/Q2	30mA/-100mA
Q1 Input Resistance(R1)	47KΩ/Ohm
Q1 Base-Emitter Resistance(R2)	47KΩ/Ohm
(R1/R2) Q1 Resistance Ratio	1
Q2 Input Resistance(R1)	4.7KΩ/Ohm
Q2 Base-Emitter Resistance(R2)	10KΩ/Ohm
(R1/R2) Q2 Resistance Ratio	0.47
DC Current Gain(hFE)
Transtion Frequency(fT)	250MHz
Power Dissipation	150mW/0.15W
Description & Applications
描述与应用

List of related models

Commodity Description	Supplier model	Manufacturer	Explain	Stock
EMD10 Complex Bipolar Digital Transistor 50V 0.1A 250MHZ R1=2.2KΩ R2=47KΩ SOT-563/EMT6 marking D10 switching inverting interface driver circuit	EMD10 Mark：D10 Package：SOT-563/EMT6	-	Batch number：05+PB	0 Min Order:100
EMD12 NPN+PNP Complex Bipolar Digital Transistor 40V/-10V 100mA/-100mA 150mW/0.15W SOT-563/EMT6 marking D12 switching inverting interface driver circuit	EMD12 Mark：D12 Package：SOT-563/EMT6	-	Batch number：06+135Knopb 06+ROHS178K	180800 Min Order:100
EMD1S-W-S-V51 bridge rectifiers 50V 35V 800mA/0.8A 1.05V MMP-4A marking EMD1S	EMD1S-W-S-V51 Mark：EMD1S Package：MMP-4A	-	Batch number：05NOPB	2985 Min Order:10
EMD2 NPN+PNP Complex Bipolar Digital Transistor 50V 0.1A 150mW/0.15W SOT-563/EMT6 marking D2 switching inverting interface driver circuit	EMD2 Mark：D2 Package：SOT-563/EMT6	-	Batch number：05+ 05+ROHS8RM+28K	230000 Min Order:100
EMD20 Complex Bipolar Digital Transistor SOT-563/EMT6 marking D20 switching inverting interface driver circuit	EMD20 Mark：D20 Package：SOT-563/EMT6	-	Batch number：05+	4600 Min Order:100
EMD22 NPN+PNP Complex Bipolar Digital Transistor 50V 100mA 150mW/0.15W SOT-563/EMT6 marking D22 switching inverting interface driver circuit	EMD22 Mark：D22 Package：SOT-563/EMT6	-	Batch number：05 NOPB 05+ROHS	138 Min Order:100
EMD35 Complex Bipolar Digital Transistor SOT-563/EMT6 marking D35 switching inverting interface driver circuit	EMD35 Mark：D35 Package：SOT-563/EMT6	-	Batch number：06NOPB 05+NOPB32KM+129K	162000 Min Order:100
