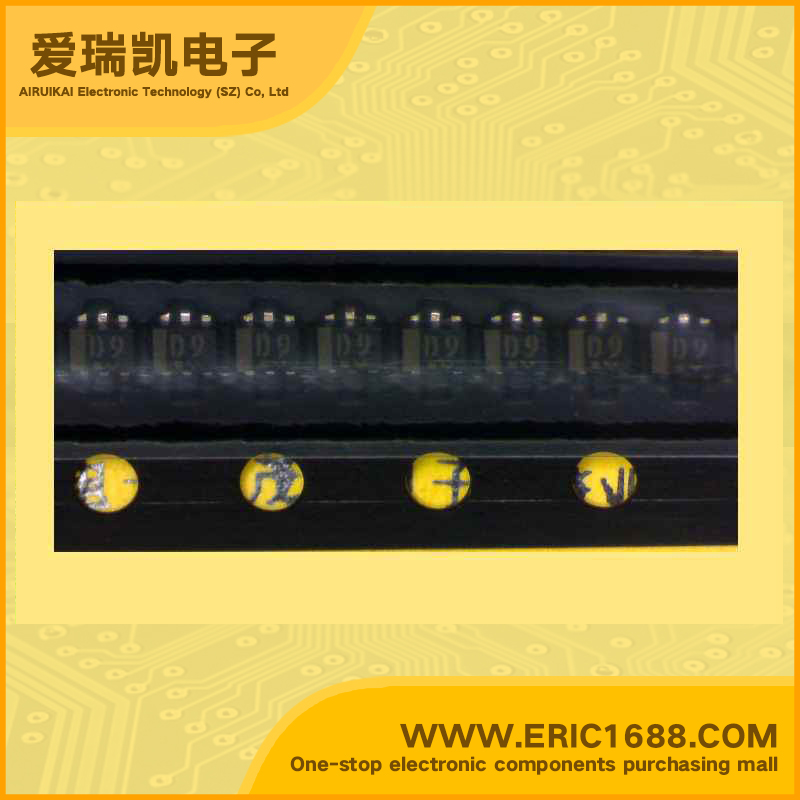

EMD9 Complex Bipolar Digital Transistor 50V 0.1A 0.15W SOT-563/EMT6 marking D9 switching inverting interface driver circuit

Model：EMD9
Mark / screen / code / typing：D9
Manufacturer：
Date Code：04nopb 05+NOPB20k
Package：SOT-563/EMT6
Standard Package：8000
Min Order：100

Hot selling goods

Product description

Collector-Base Voltage(VCBO) Q1/Q2	-50V/50V
Collector-Emitter Voltage(VCEO) Q1/Q2	-50V/50V
Collector Current(IC) Q1/Q2	-100mA/100mA
Q1 Input Resistance(R1)	10KΩ/Ohm
Q1 Base-Emitter Resistance(R2)	47KΩ/Ohm
(R1/R2) Q1 Resistance Ratio	0.21
Q2 Input Resistance(R1)	10KΩ/Ohm
Q2 Base-Emitter Resistance(R2)	47KΩ/Ohm
(R1/R2) Q2 Resistance Ratio	0.21
DC Current Gain(hFE)
Transtion Frequency(fT)	250MHz
Pc Power Dissipation	150mW/0.15W
Description & Applications	Features •DTA114Y and DTC114Y transistors are built-in a EMT or UMT or SMT package •(Dual Digital Transistors for Inverter Drive)
描述与应用	特点 •DTA114Y和DTC114Y晶体管内置在EMT或UMT或SMT封装 •（逆变器驱动的双数字晶体管）
