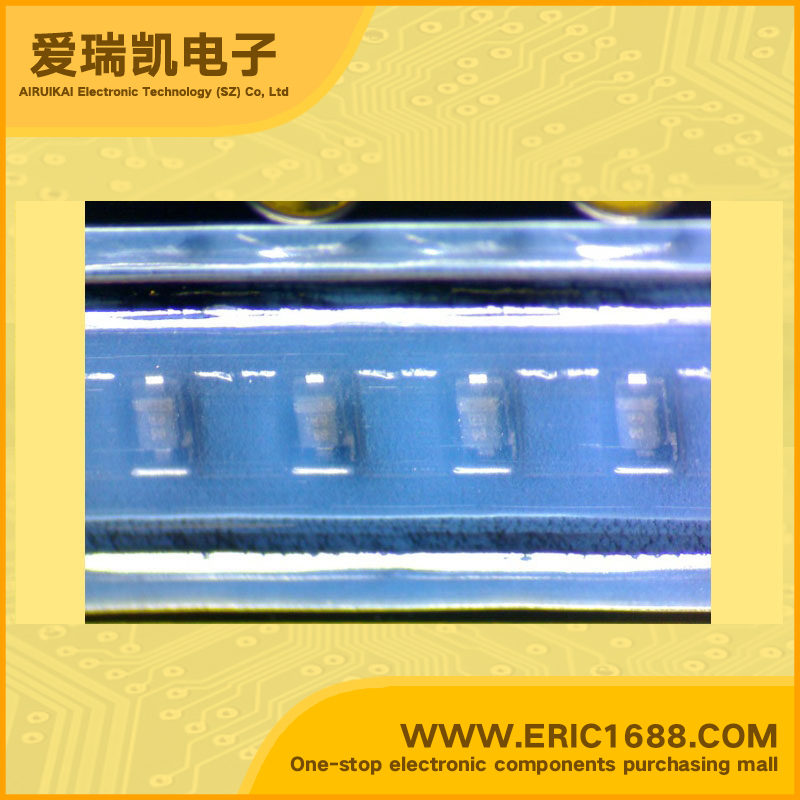

ESD9X5.0ST5G TVS/ESD 5V 8.7A 0.15W/150mW SOD923-5V marking B
| 极性 Polarization | 单向 Unidirectional |
| 反向关断电压/工作电压VRWM Reverse Standoff Voltage | 5V |
| 反向击穿电压VBR Breakdown Voltage | 6.2V |
| 峰值脉冲耗散功率PPPM Peak Pulse Power Dissipation | 107W |
| 峰值脉冲电流IPPm Peak Forward Surge Current | 8.7A |
| 额定耗散功率Pd Power dissipation | 0.15W/150mW |
| Description & Applications | ESD Protection Diodes In Ultra Small SOD−923 Package；Specification Features • Small Body Outline Dimensions:0.039″ x 0.024″(1.0 mm x 0.60 mm) • Low Body Height: 0.017″ (0.43 mm) Max • Stand−off Voltage: 3.3 V − 12 V • Low Leakage • Response Time is Typically < 1 ns • ESD Rating of Class 3 (> 16 kV) per Human Body Model • IEC61000−4−2 Level 4 ESD Protection • These are Pb−Free Devices |
| 描述与应用 | ESD保护二极管 在超小SOD-923封装;规格特性 •小体外形尺寸：0.039“×0.024”（1.0毫米x0.60毫米） •低主体高度：0.017“（0.43毫米）最大 •关断电压电压：3.3 V - 12 V •低漏 •响应时间通常小于1 ns •每人体模型ESD额定值的3类（16千伏） •IEC61000-4-24级ESD保护 •这些都是无铅设备 |
