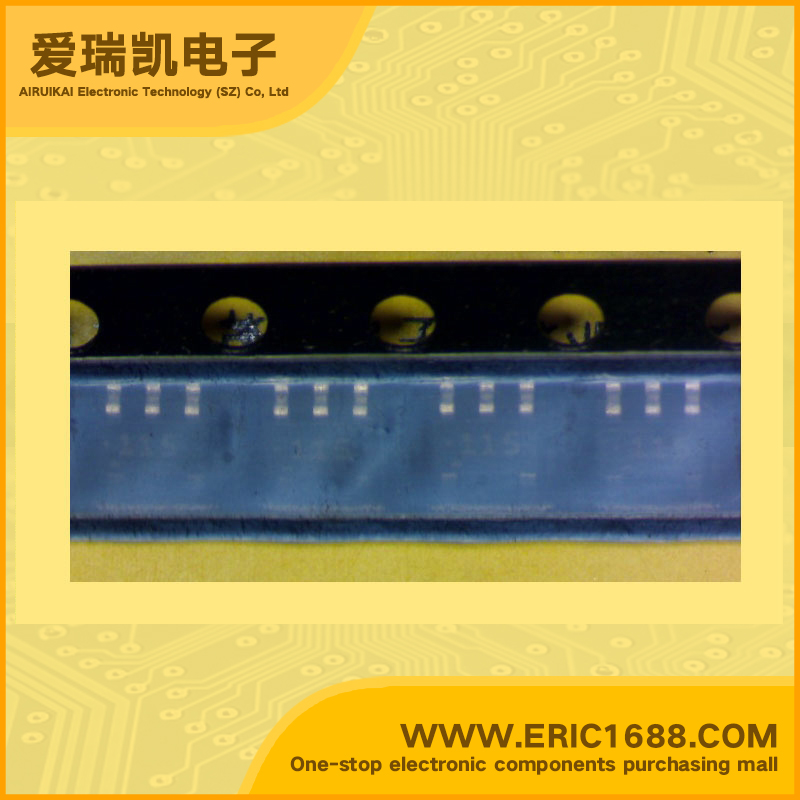

FC115 PNP+PNP Complex Bipolar Digital Transistor -50V -100mA HEF=50 R1=R2=10KΩ 200mW/0.2W SOT-153/SOT23-5 marking 115 switching inverting interface driver circuit

Model：FC115
Mark / screen / code / typing：115
Manufacturer：
Date Code：05+
Package：SOT-153/SOT23-5
Standard Package：3000
Min Order：10

Hot selling goods

Product description

V(BR) CBO Collector-Base Voltage	-50V
V(BR) CEO Collector-Emitter Voltage	-50V
Collector Current(IC)	-100ma
Input Resistance(R1)	10KΩ
Base-Emitter Resistance(R2)	10KΩ
Base-Emitter Input Resistance Ratio (R1/R2)	1
DC Current Gain(hFE)	50
Transtion Frequency(fT)	200MHZ
Power Dissipation （Pd）	0.2W
Description & Applications	Features•PNP Epitaxial Planar Silicon Composite Transistor•On-chip bias resistors (R1=10kΩ, R2=10kΩ)•Composite type with 2 transistors contained in the CP package currently in use, improving the mounting efficiency greatly.•The FC115 is formed with two chipe
Technical Documentation Download	Read Online
